Sale: durable, rust - proof galvanized sq. Tubes

A galvanized square tube is a hollow structural steel section that has been coated with a layer of zinc to protect it from corrosion. This process, known as galvanization, involves immersing the steel in molten zinc, creating a robust barrier that prevents rust and extends the life of the material. The square shape of the tube provides excellent structural integrity, making it ideal for a wide range of applications.

product details

specification

Product Name	galvanized square tube
Standard	ASTM,JIS,DIN,GB,AISI,DIN,EN
Material	Q195、Q235、Q345、304 stainless steel、Hot-dip galvanizing and cold-dip galvanizing
Outer diameter range	Small size: The outer diameter is usually between 20mm x 20mm and 50mm x 50mm. Medium specification: The outer diameter is usually between 50mm x 50mm and 100mm x 100mm. Large size: The outer diameter is usually between 100mm x 100mm and 200mm x 200mm. Extra Large Specification: The outer diameter can reach 300mm x 300mm or larger.
Thickness range	Small specification: Wall thickness is usually between 1.0mm and 3.0mm. Medium specification: Wall thickness is usually between 3.0mm and 6.0mm. Large specification: Wall thickness can reach 6.0mm to 12.0mm or thicker.
Length range	Customized length according to customer's special requirements.
Error	±1%
Certification	ISO 9001 ，CE，API
Surface treatment	Hot-dip galvanizing、Cold galvanizing、Spraying、Phosphating、Polishing
Country of origin	China
Main Applications	1.Construction Engineering: Used in building structures, frames, supports and fences, etc., because of its high strength and corrosion resistance, it is suitable for outdoor use.
	2.Mechanical Manufacturing: As structural parts and supporting parts of mechanical equipment, it is widely used in the manufacture of various mechanical equipment.
	3.Transportation: Used to make transportation facilities, such as guardrails, bridge supports, etc., which can withstand greater pressure and impact.
	4.Furniture manufacturing: Used to make metal furniture such as tables, chairs, shelves, etc., because of its beautiful appearance and durability.
	5.Agricultural facilities: Support structures used for agricultural facilities such as greenhouses and farms, which can withstand severe weather.
	6.Power and Communications: Used for supporting and connecting infrastructure such as power towers and communication towers.
Package	Simple packaging, reinforced packaging, wooden frame, metal frame, pallet, wrapping
Payment Term	TT, LC,Cash, Paypal, DP, DA,Western Union or Others.
After-sales service	1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection

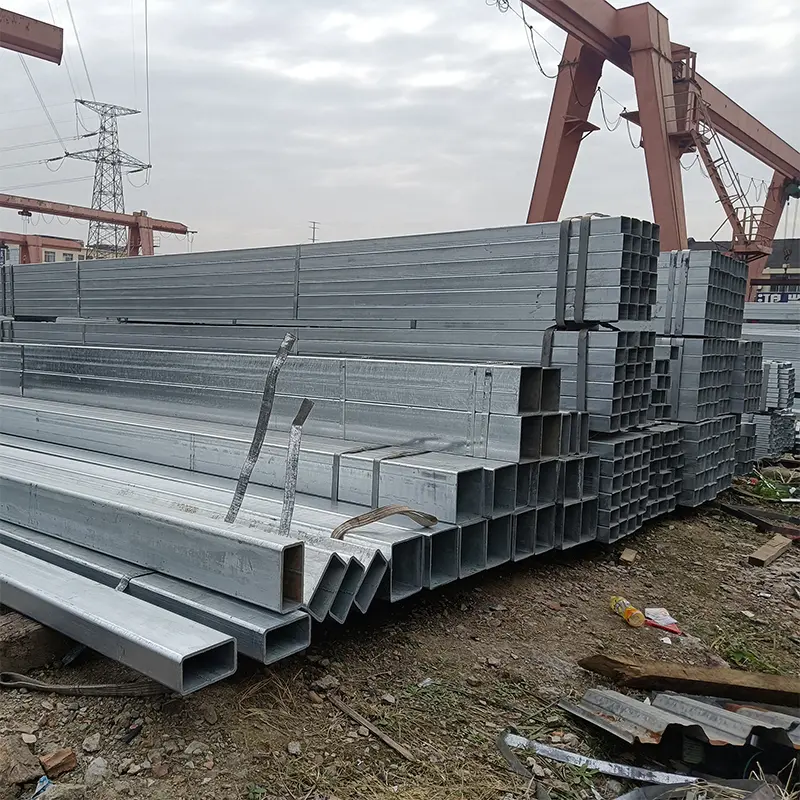

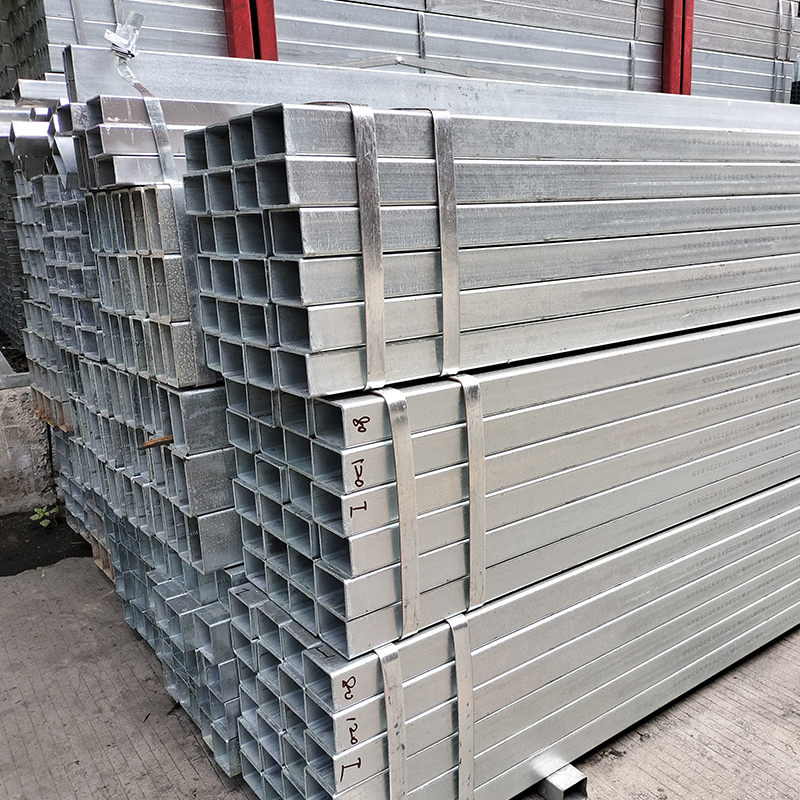

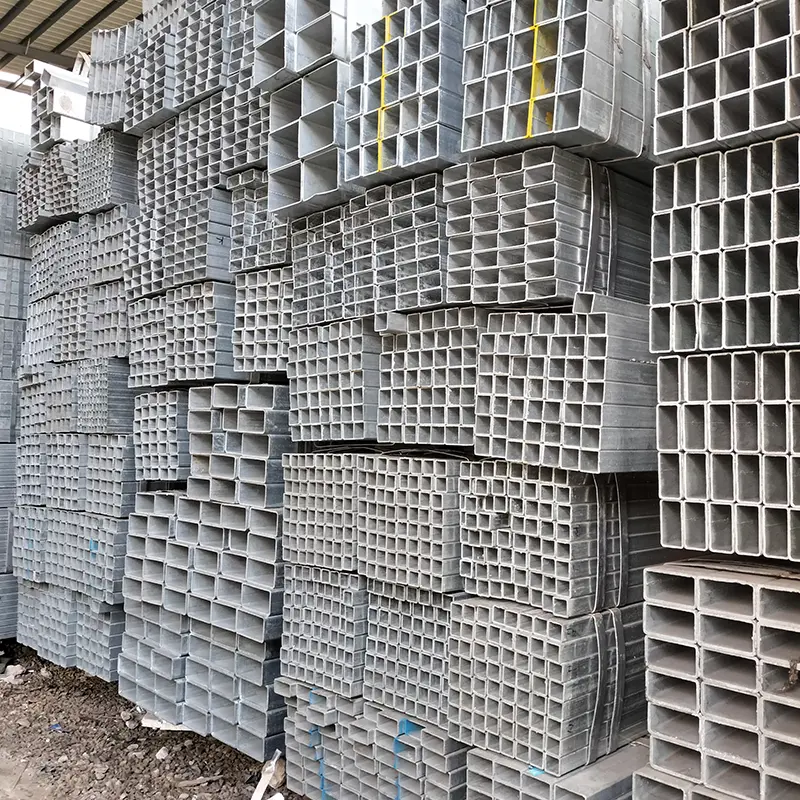

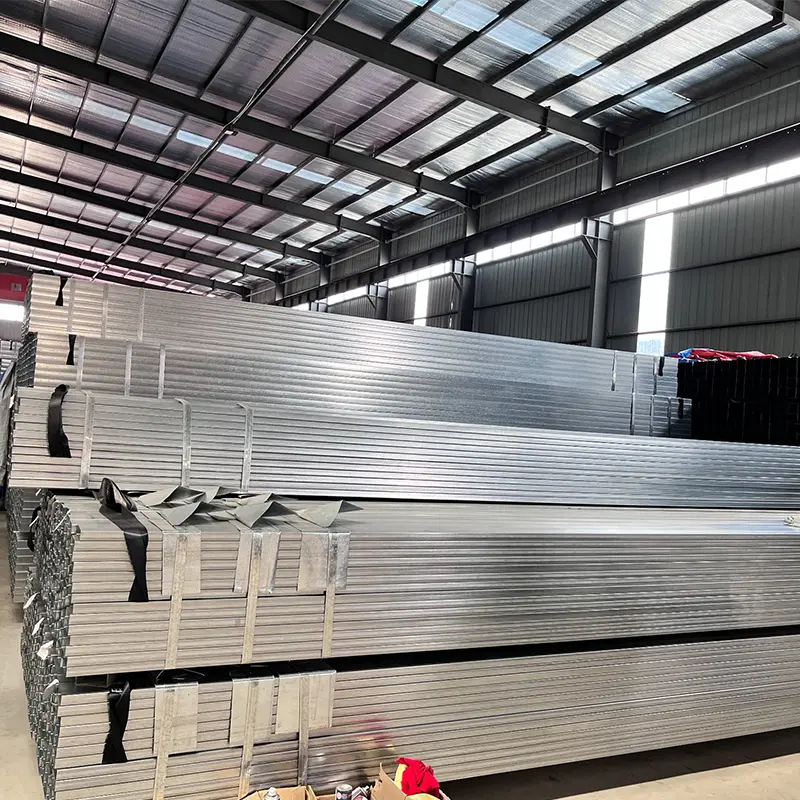

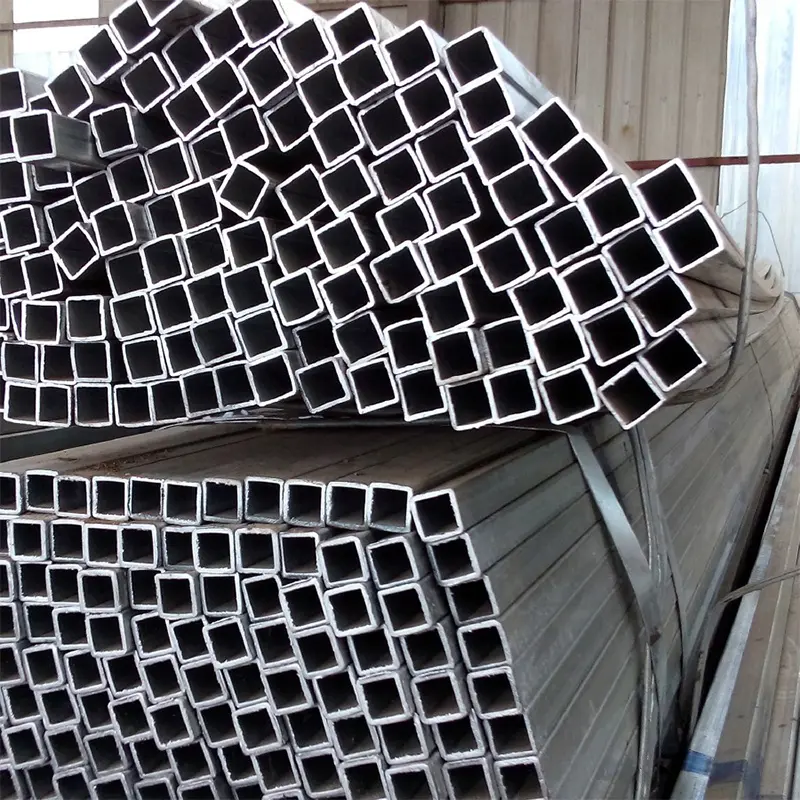

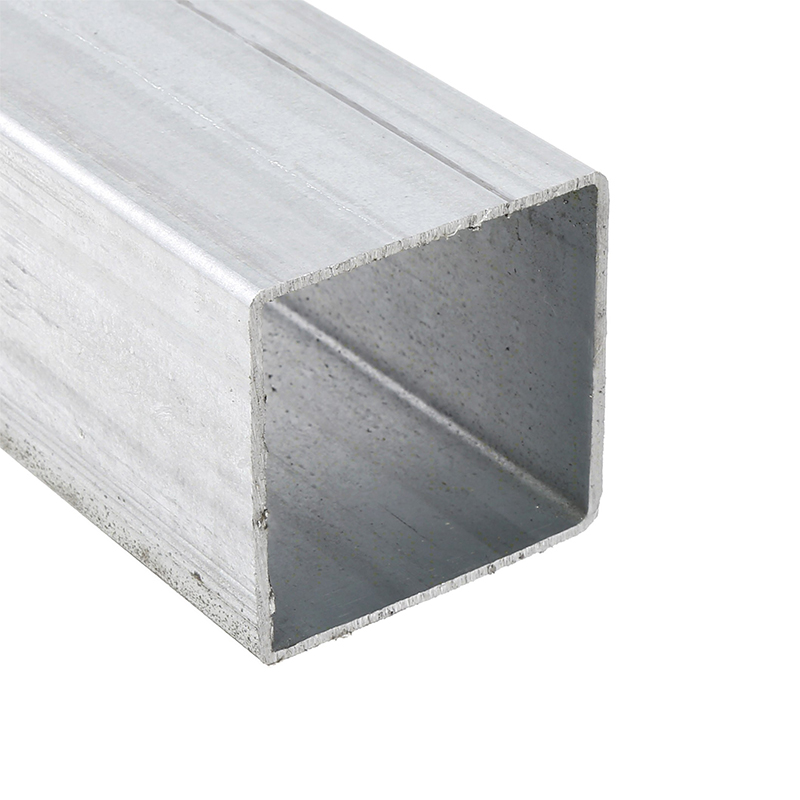

Product Display

Production process

.Raw material preparation:
Select the appropriate steel (e.g. hot rolled or cold rolled strip), cut and prepare according to product specifications.
.Molding:
The steel strip is passed through a forming machine to be cold bent to form the preliminary shape of the square tube. During the forming process, the edges of the steel strip overlap.
.Welding:
Use high frequency welding or other welding methods to weld the overlapping edges together to form a complete square tube. After welding, cooling treatment is required.
.Cutting:
Cut the welded square tubes to the length required by the customer.
.Surface treatment:
Clean the square tube to remove surface oxides and impurities to ensure the adhesion of the galvanized layer.
Hot dip galvanizing or cold dip galvanizing. Hot dip galvanizing is done by immersing the square tube in molten zinc, while cold dip galvanizing is done by electroplating.
.Inspection:
Carry out quality inspection on galvanized square tubes, including appearance, size, welding quality and galvanized layer thickness, to ensure compliance with relevant standards.
.Packing and Delivery:
Pack qualified galvanized square tubes and prepare to ship to customers.
