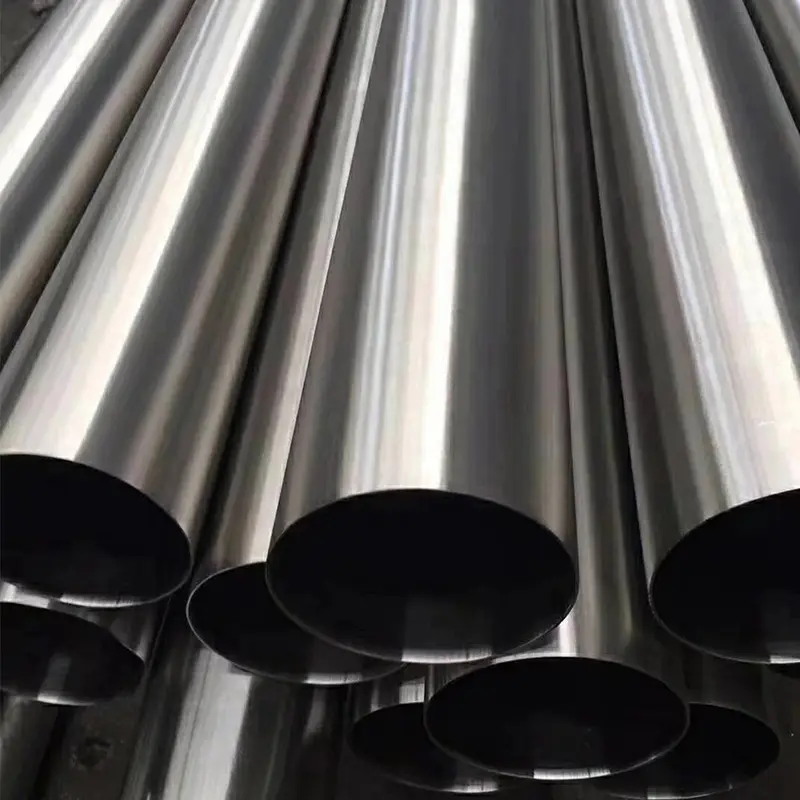

High - Quality Incoloy 625 Alloy Pipe

The Incoloy 625 steel pipe is designed to withstand harsh conditions, including exposure to seawater, acidic environments, and high-stress applications. Its unique composition provides excellent mechanical properties, ensuring durability and reliability even in the most challenging situations. With a tensile strength that surpasses many conventional materials, this steel pipe can handle significant pressure and stress, making it a preferred choice for critical applications.
One of the standout features of Incoloy 625 is its versatility. It can be easily fabricated and welded, allowing for seamless integration into existing systems. Whether you need pipes for heat exchangers, pressure vessels, or other industrial applications, Incoloy 625 offers the flexibility and performance you require.

product details

specification

Product Name		Incoloy 625 Pipe
Standard		ASTM,JIS,DIN,GB,AISI,DIN,EN
Outer Diameter	Round Pipe	4mm-200mm
	Square Pipe	1010mm-100100mm
	Rectangular Pipe	1020mm-50100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Error		±1%
Certification		ISO 9001 ，CE，API
Surface treatment		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Production Technology		Hot Rolling, Cold Rolling
Country of origin		China
Main Applications		Oil and gas industry, chemical industry, power industry, building and construction, automotive industry, aerospace, machinery manufacturing
Package		Bundling, wooden box packaging, pallet packaging, plastic film packaging, anti-rust oil coating, container transportation
Payment Term		TT, LC,Cash, Paypal, DP, DA,Western Union or Others.
After-sales service		1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection

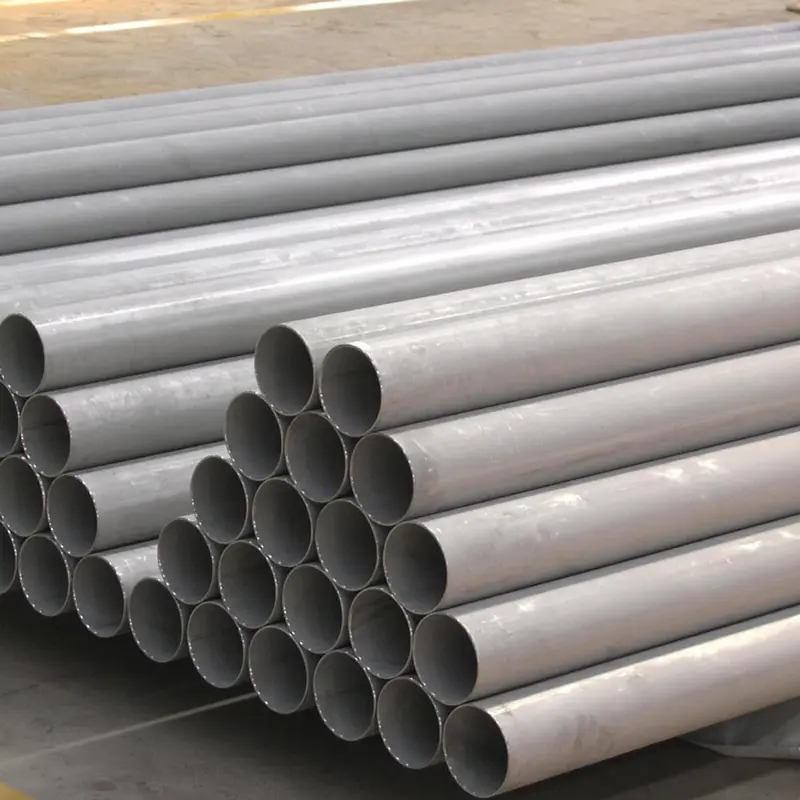

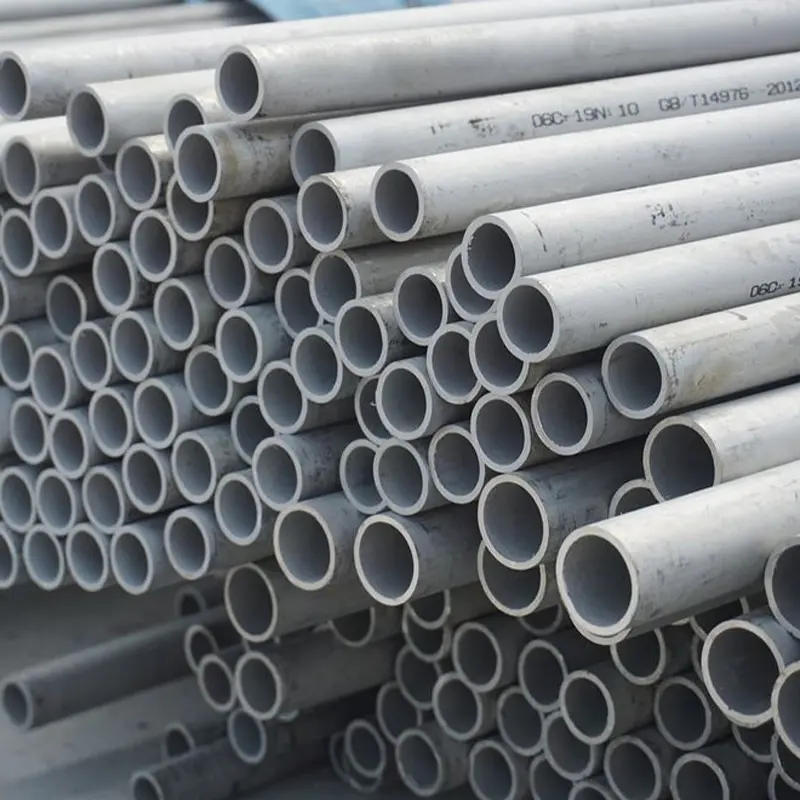

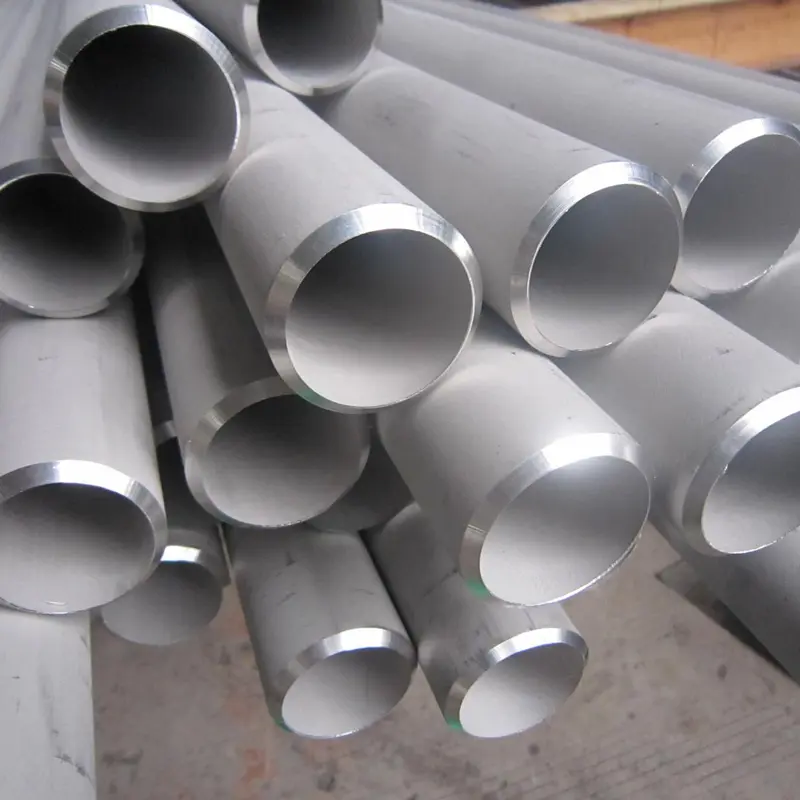

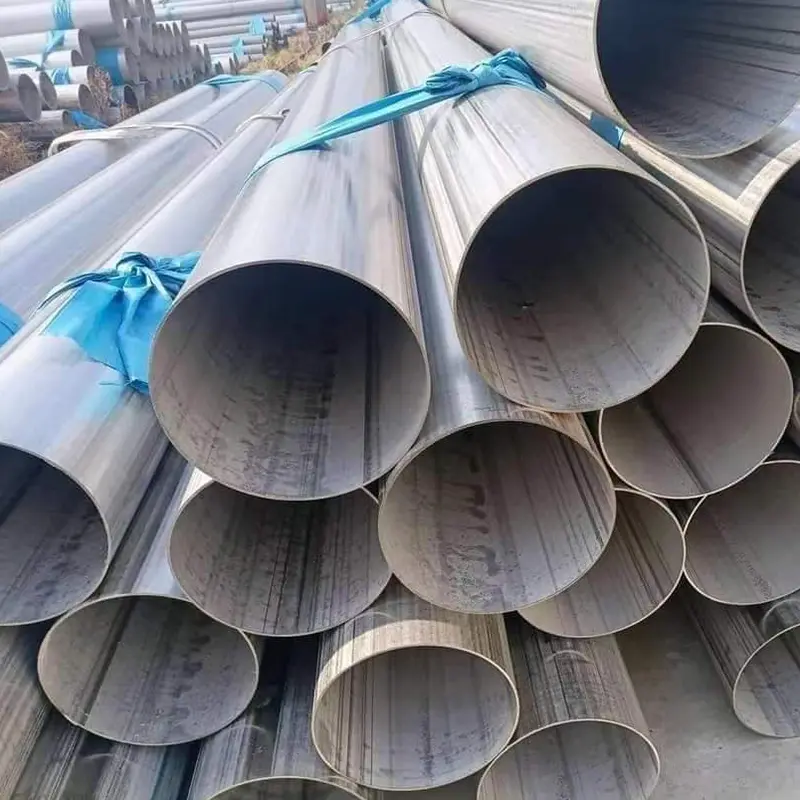

Product Display

Chemical Composition

Cb (Nb Ta)

0.1 max

0.5 max

0.4 max

0.5 max

0.015 max

0.4 max

20.00 - 23.00

5.0 max

1.0 max

58.0 min

8.0 - 10.0

3.15 - 4.15

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
120	60	30

Physical Performance

	Units	Temperature in°C
Density	8.44 g/cm³	Room
Specific Heat	0.098 Kcal/kg.C	21°
Melting Range	1290-1350°C	-
Modulus of Elasticity	207.5 KN/mm²	21°
Electrical Resistivity	129 µΩ.cm	21°
Coefficient of Expansion	12.8 µm/m °C	21 - 93°
Thermal Conductivity	9.8 w/m-° K	21°
