High Quality Incoloy 601 Plate

The Incoloy 601 steel plate boasts remarkable mechanical properties, including excellent tensile strength and ductility, which ensure reliability and durability in challenging conditions. Its unique composition provides outstanding resistance to both oxidation and carburization, allowing it to maintain structural integrity even in environments with fluctuating temperatures and corrosive atmospheres.
One of the standout features of Incoloy 601 is its ability to perform effectively in high-temperature applications, withstanding temperatures up to 2200°F (1200°C). This makes it particularly suitable for use in furnace components, heat exchangers, and industrial ovens, where other materials may fail. Additionally, the alloy's resistance to stress corrosion cracking further enhances its longevity and performance, reducing the need for frequent replacements and maintenance.

product details

specification

Product Name	Incoloy 601 Plate
Standard	ASTM,JIS,DIN,GB,AISI,DIN,EN
Thickness	0.3mm-200mm
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Error	±1%
Certification	ISO 9001 ，CE，API
Surface treatment	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Production Technology	Hot Rolling, Cold Rolling
Country of origin	China
Main Applications	Construction engineering, automotive industry, mechanical engineering, oil and gas industry, aerospace, shipbuilding, power industry, mining and metallurgy
Package	Bundling packaging、Wooden box packaging、Plastic film packaging、Pallet packaging、Anti-rust oil coating、Bubble film packaging
Payment Term	TT, LC,Cash, Paypal, DP, DA,Western Union or Others.
After-sales service	1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection

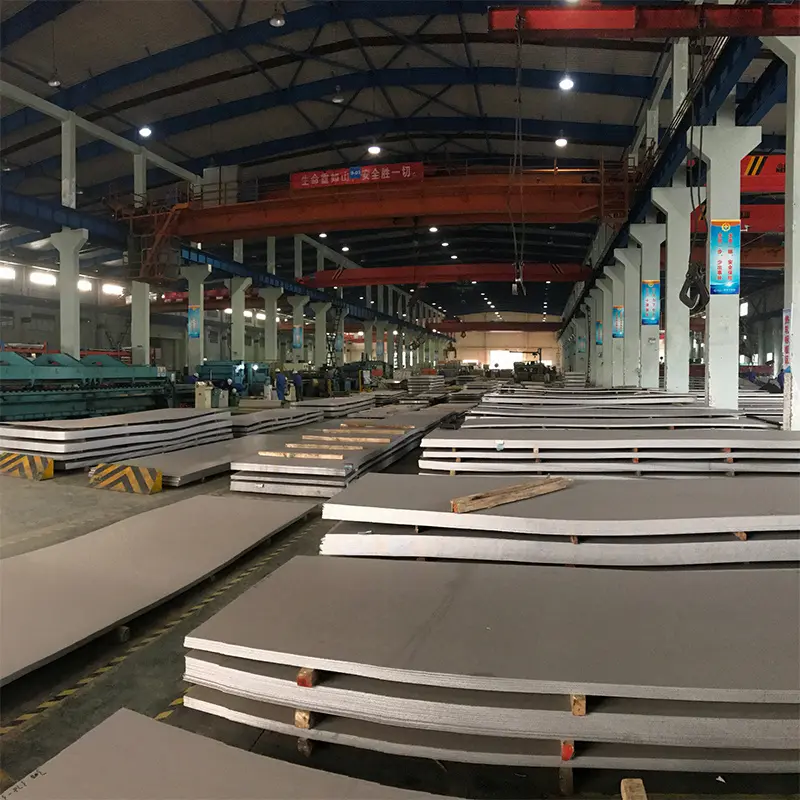

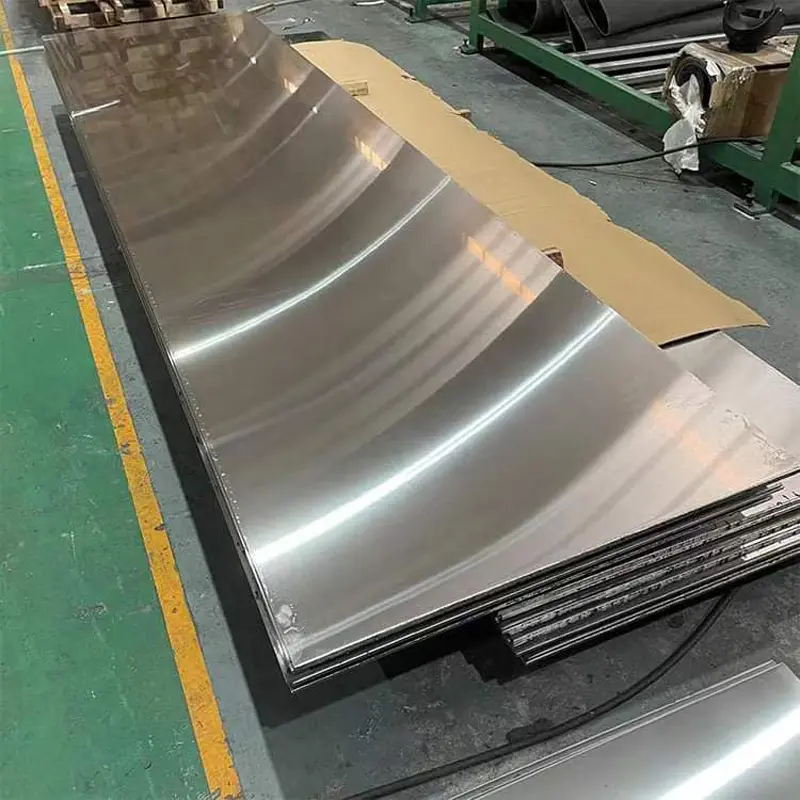

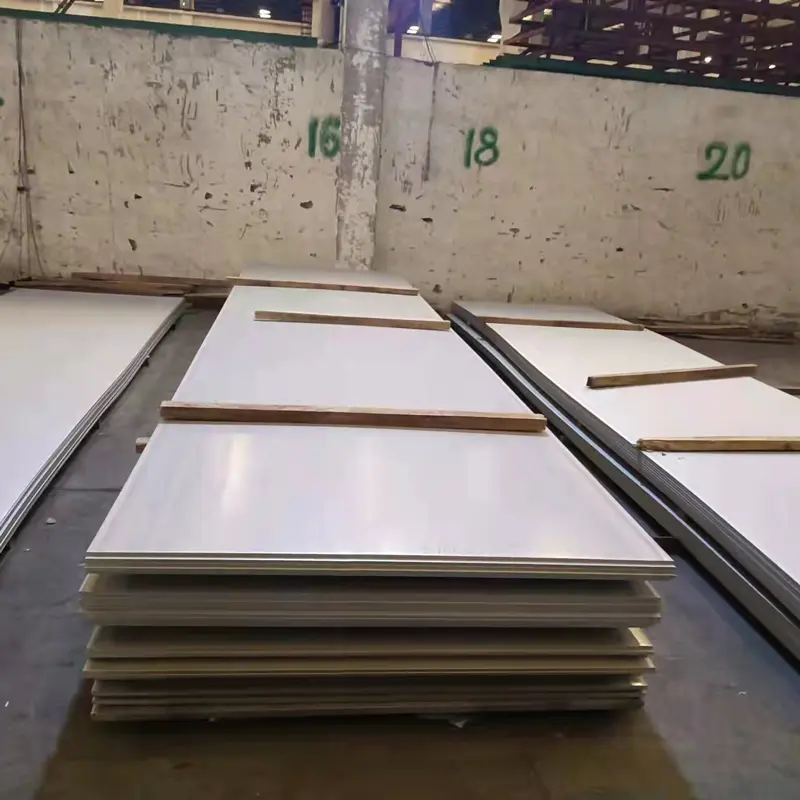

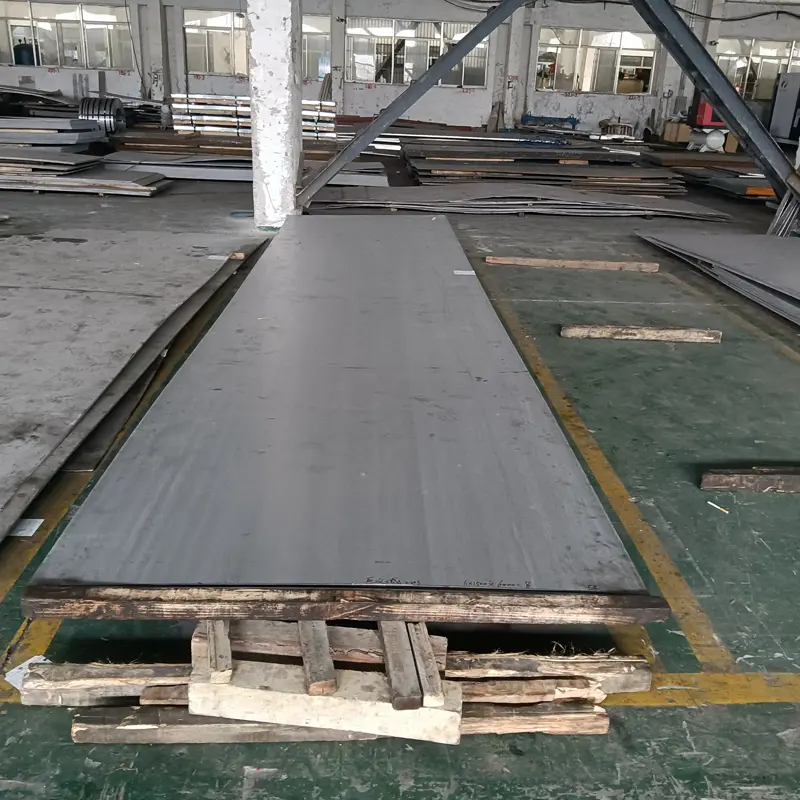

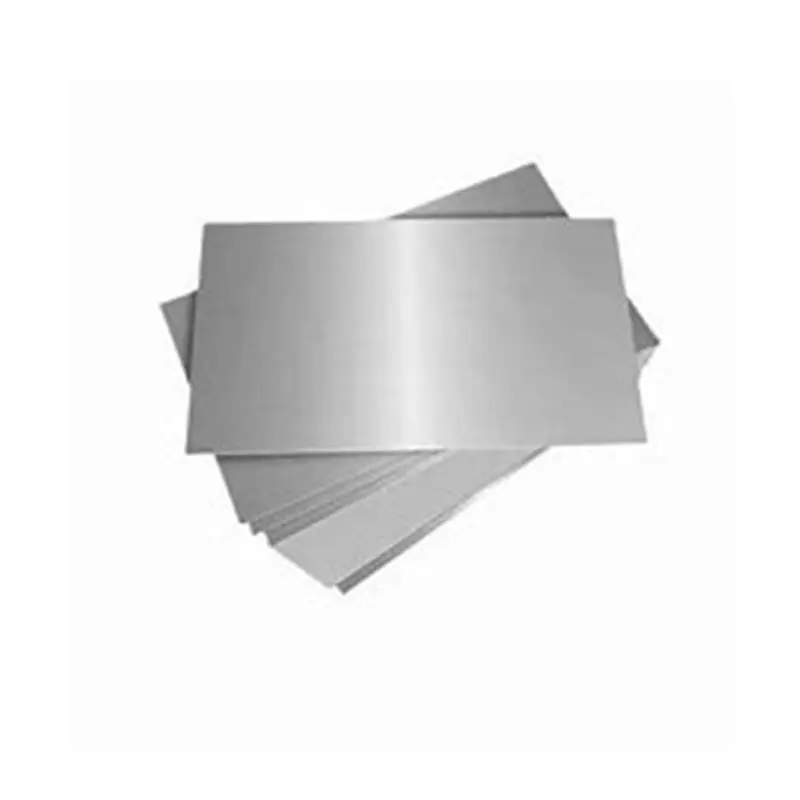

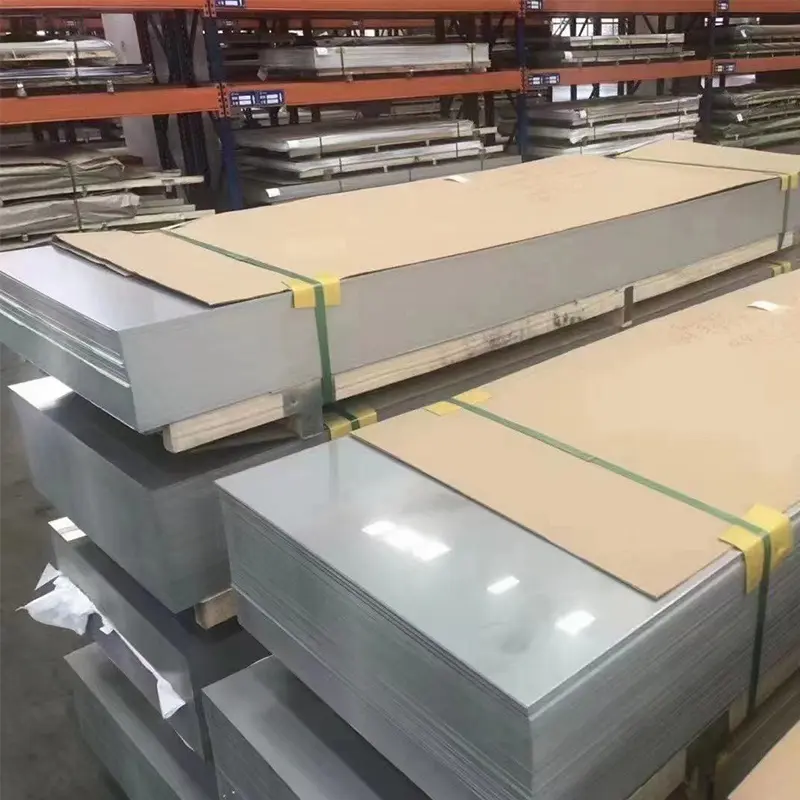

Product Display

Chemical Composition

C	Al	Si	S	Cr	Mn	Fe	Ni	Cu
0.1 max	1.0-1.7	0.5 max	0.015 max	21.0-25.0	1.0 max	Remainder	58.0-63.0	1.0 max

Mechanical Properties

Tensile Strength (ksi)	0.2% Yield Strength (ksi)	Elongation% in 2 inches
80	30	30

Physical Performance

	Units	Temperature in°C
Density	8.11 g/cm³	Room
Specific Heat	0.107 Kcal/kg.C	20°
Melting Range	1360-1411°C	-
Modulus of Elasticity	206.5 KN/mm²	20°
Electrical Resistivity	118 µΩ.cm	20°
Coefficient of Expansion	13.75 µm/m °C	20 - 100°
Thermal Conductivity	11.2 w/m-° K	20°
