High Quality Hastelloy B-3 Coil
specification
| Product Name | Hastelloy B-3 Coil |
| Standard | ASTM,JIS,DIN,GB,AISI,DIN,EN |
| Thickness | 2.5mm-10.0 mm |
| Width | 610-2000 mm |
| Length | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc. |
| Error | ±1% |
| Certification | ISO 9001 ，CE，API |
| Surface treatment | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
| Production Technology | Hot Rolling, Cold Rolling |
| Country of origin | China |
| Main Applications | Automobile industry, machinery manufacturing, construction engineering, oil and gas industry, aerospace, power industry, home appliance industry |
| Package | Plastic film packaging, wooden pallet packaging, steel strapping, carton packaging, anti-rust oil coating, container transportation, customized packaging |
| Payment Term | TT, LC,Cash, Paypal, DP, DA,Western Union or Others. |
| After-sales service | 1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection |

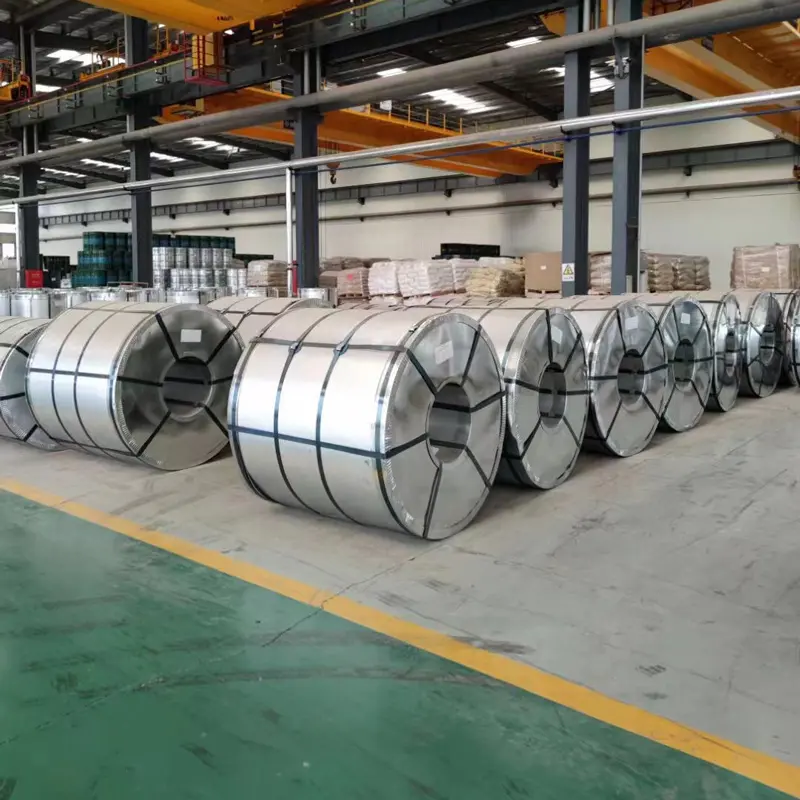

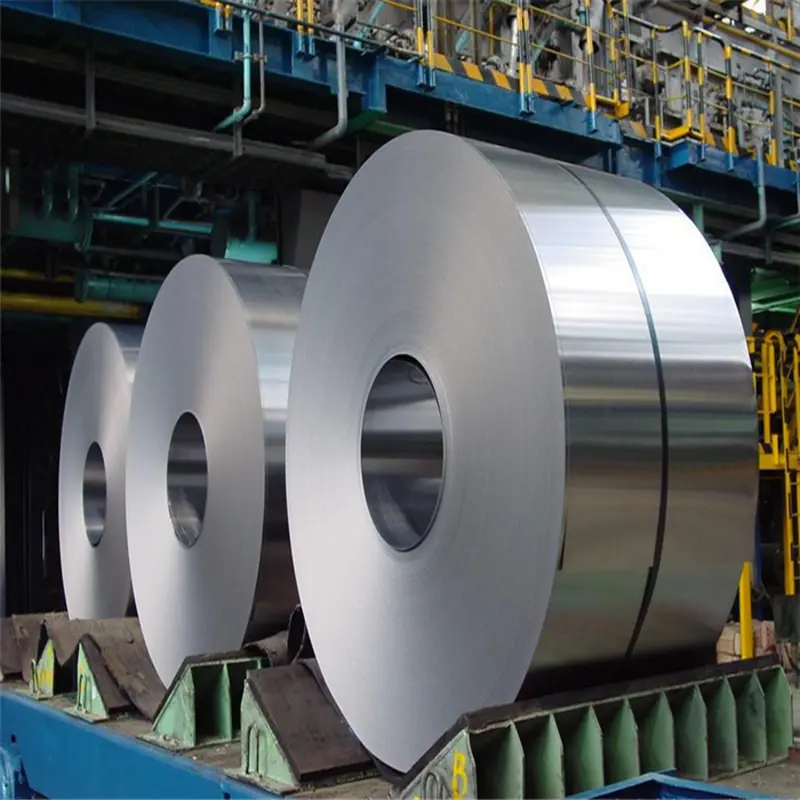

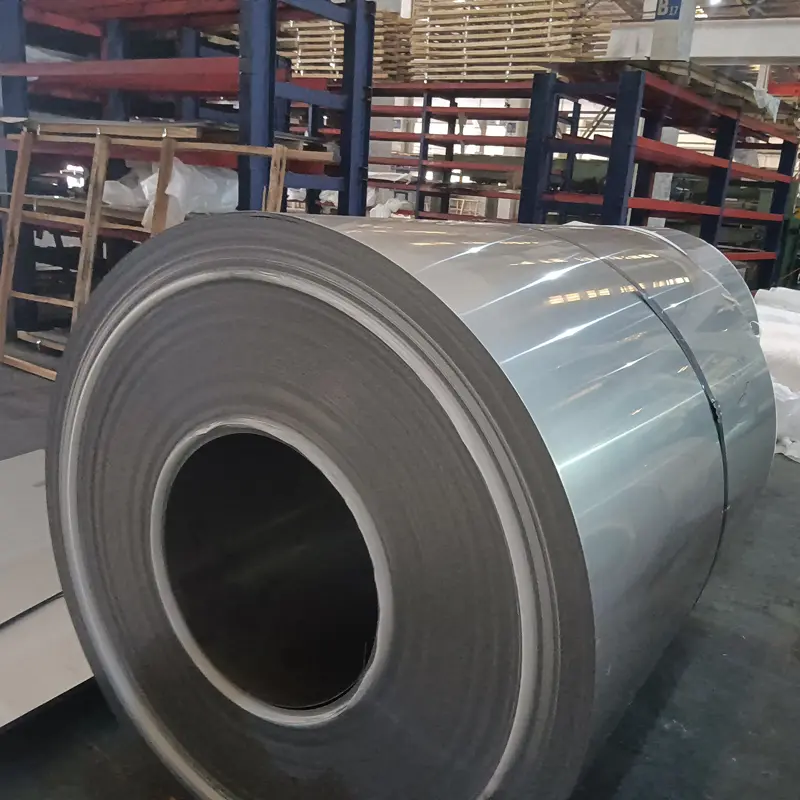

Product Display
Chemical Composition
| C | Al | Si | P | S | Ti | V | Cr | Mn | Fe | Co | Ni | Cu | Zr | Nb | Mo | Ta | W | Not MO |
| 0.01 max | 0.5 max | 0.10 max | 0.03 max | 0.01 max | 0.2 max | 0.2 max | 1.0 - 3.0 | 3.0 max | 1.0 - 3.0 | 3.0 max | 65.0 min | 0.2 max | 0.1 max | 0.2 max | 27.0 - 32.0 | 0.2 max | 3.0 max | 94.0 - 98.0 |
Mechanical Properties
| Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
|
110 |
51 |
40 |
Physical Performance
| Units | Temperature in°C | |
|
Density |
9.22 g/cm³ |
Room |
|
Specific Heat |
0.089 Kcal/kg.C |
Room |
|
Melting Range |
1370-1418°C |
- |
|
Modulus of Elasticity |
216 KN/mm² |
Room |
|
Electrical Resistivity |
137 µΩ.cm |
Room |
|
Coefficient of Expansion |
10.6 µm/m °C |
25 - 100° |
|
Thermal Conductivity |
11.2 w/m-° K |
Room |
