High - quality galvanized I - beam for industry
specification
|
Product name |
Galvanized I-beam |
|
Standard |
ASTM, JIS, GB, AISI, DIN, BS, EN |
|
Certification |
ISO, BV, TUV, SGS |
|
Size |
Flange Thickness: 4.5 – 70mmor or as your request Web Thickness: 5 – 30mm or as your request Flange Width: 100mm – 1000mm Web Width: 88mm – 1056mm or as your request |
|
Materials |
A36, A588, A709, A992, A529, AH32, AH36, DH32, DH36, SS400 – SS540 Series , 300 Series, SS400, ST37 – 2, ST52, S235JR, S275JR, S355JR, S235, 5275, S355, S460 |
|
Specifications |
W8, W10, W12, W14, W16, W18, W21, W24, W27, W30, W33, W36, HP8, HP10, HP12, HP14, HP16; IPEAA80, IPEA80, IPE80, IPEAA10, IPEA100, IPE100, IPEAA120, IPEA120, IPE120, IPEAA140, IPEA140, IPE140, IPEAA160, IPEA160, IPE160, IPEAA180, IPEA180, IPE180, IPEO180+, IPEAA200, IPEA200, IPE200, IPEO200+, IPEAA220, IPEA220, IPE220, IPEO220+, IPEAA240, IPEA240, IPE240, IPE0240+, IPEA270; |
|
Tolerance standard |
EN100341993, ASTM A6/A6M-12(HL.HD360-400) |
|
Processing Service |
Cutting, Punching, Polishing or as customer’s request |
|
Surface Services |
Galvanized, Electro-galvanizing ( EG) , Hot-dip galvanizing ( HDG) |
|
Technique |
Hot rolled, cold bent, cold rolled, cold drawn, extruded, hot bent, welded and special rolled |
|
MOQ |
1 Ton |
|
Capacity |
10, 000 ton per month |
|
Payment |
T / T, L / C, etc |
|
Trade Term |
FOB, CIF, CFR, EXW, etc. |
|
Application |
I-beams are suitable for making support frames and columns for elevators, trailers, trolley ways, hoists, structural steel buildings, and bridges. H Beams are commonly used in the construction of buildings as well but also large trailers and bridges, among others. |

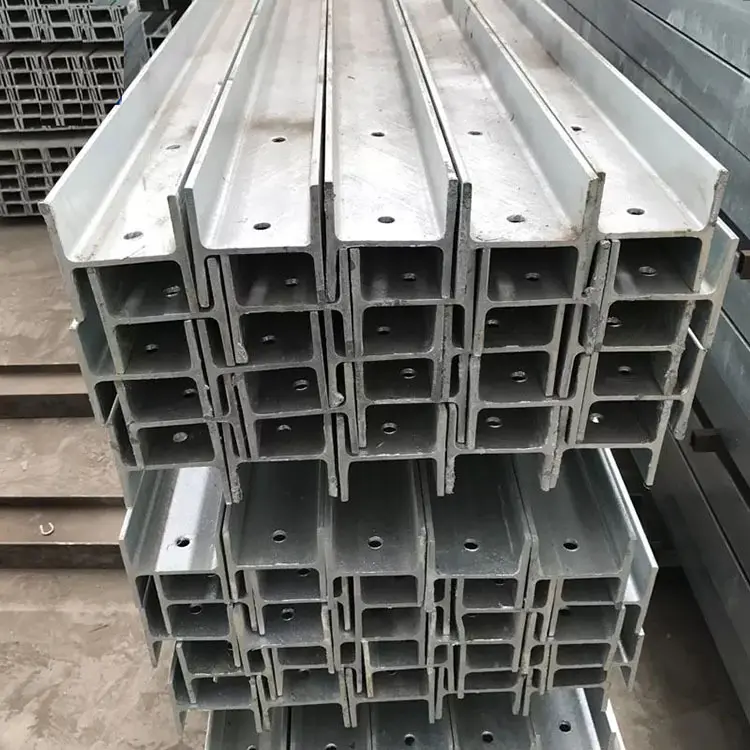

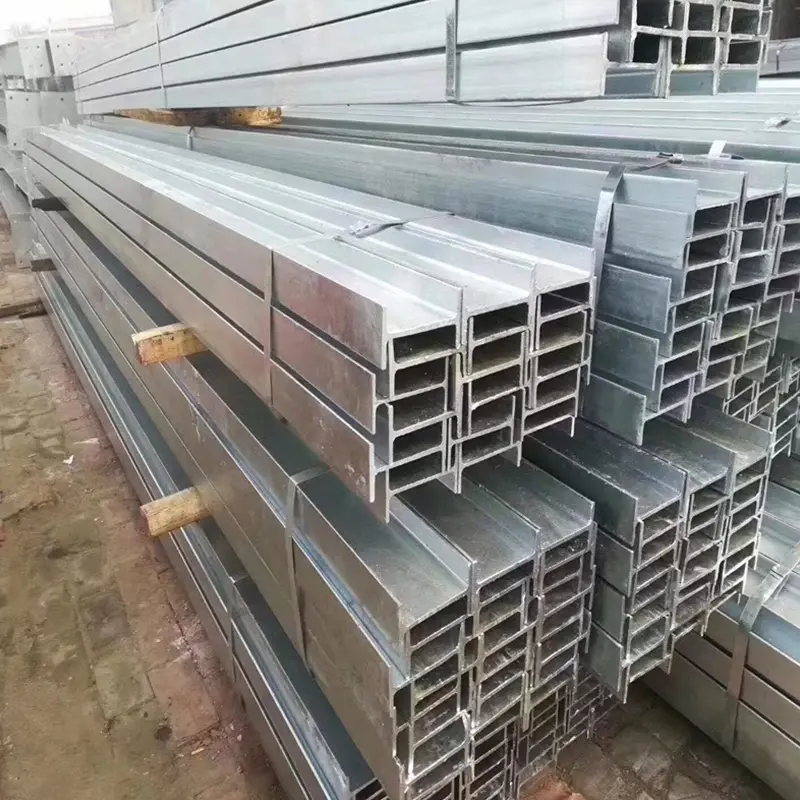

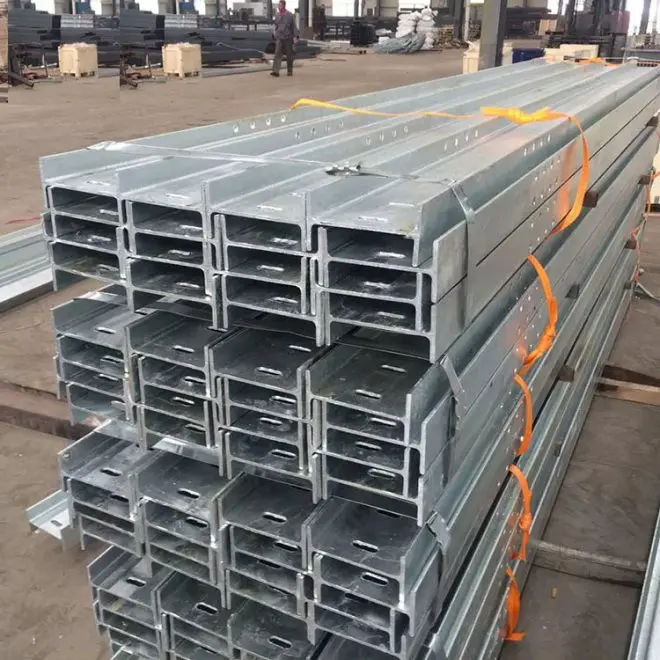

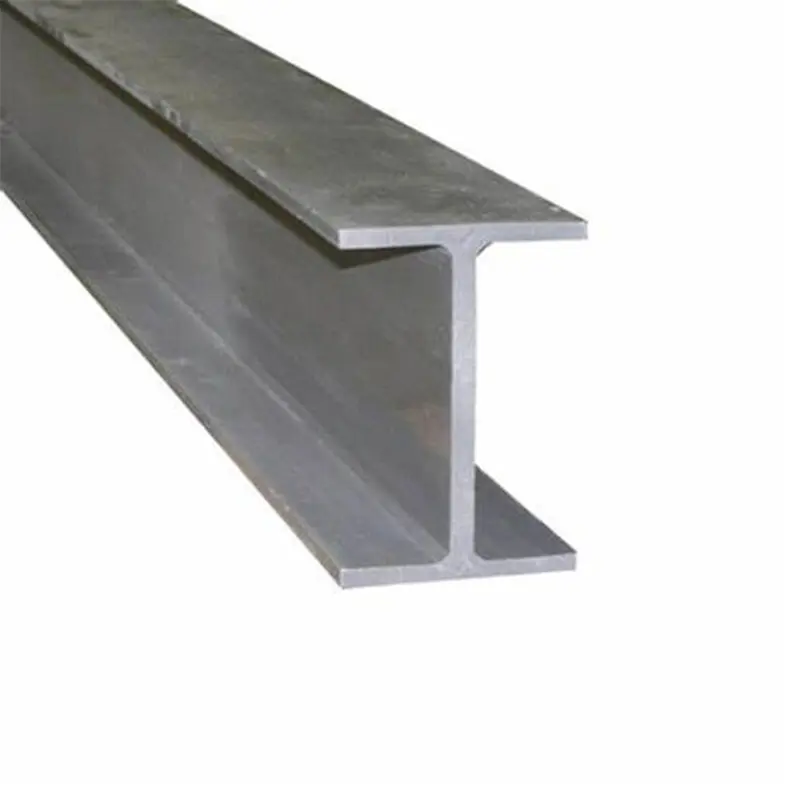

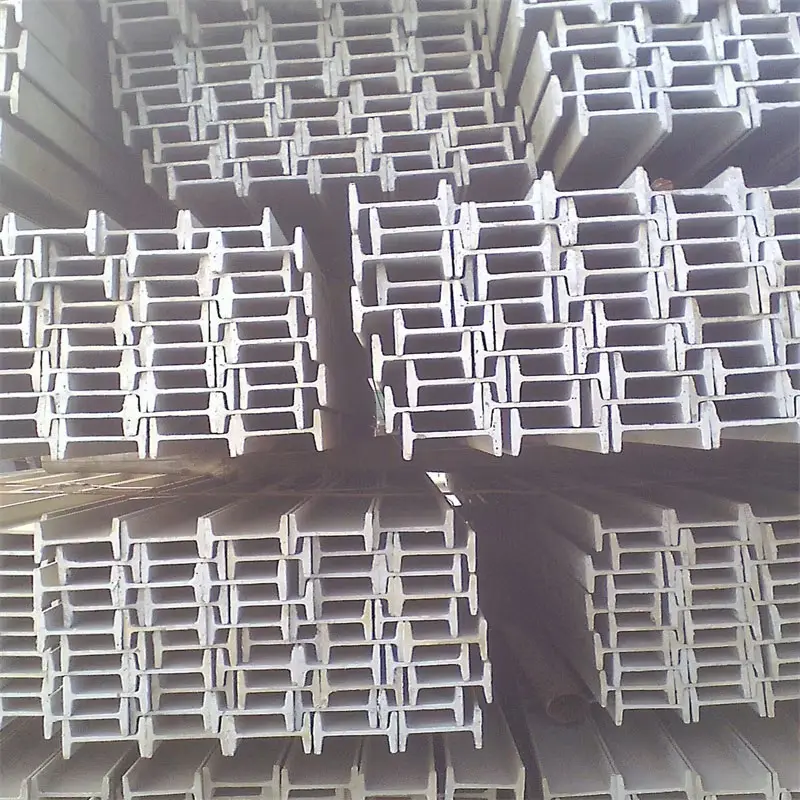

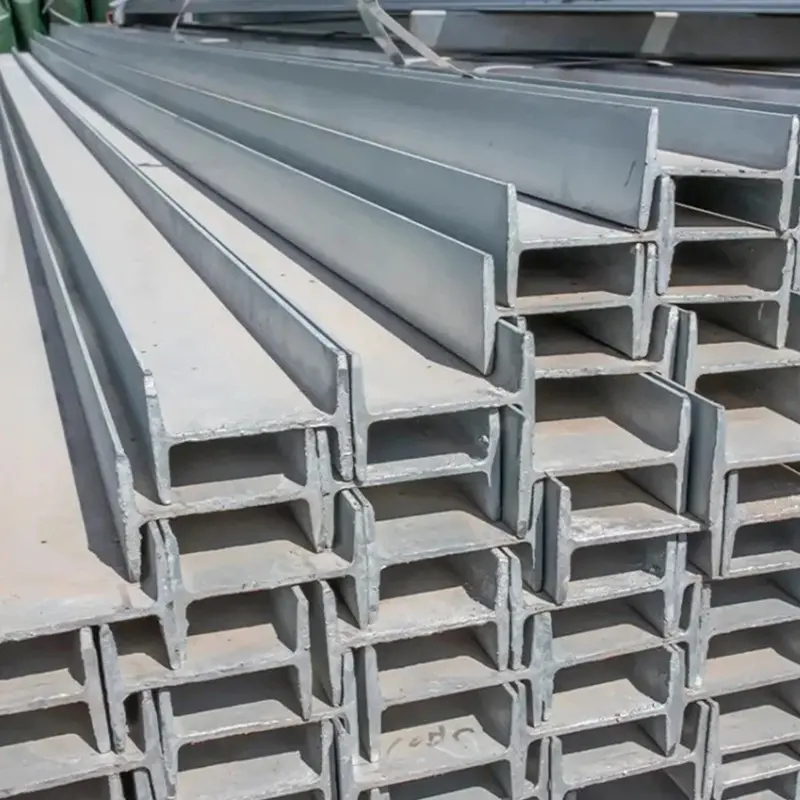

Product Display
I-beam specifications
|
Size |
High*low |
T1(mm) |
T2(mm) |
JIS weight |
National standard weight |
length |
|
(Millimeter) |
(Mm) |
(Kg/m) |
(Kg/m) |
(Meter) |
||
|
National standard / JIS |
100*100 |
6 |
8 |
16.9 |
17.2 |
6-16m |
|
National standard / JIS |
125*125 |
6.5 |
9 |
23.6 |
23.8 |
6-16m |
|
National standard / JIS |
150*75 |
5 |
7 |
14 |
14.3 |
6-16m |
|
National standard / JIS |
148*100 |
6 |
9 |
20.7 |
21.4 |
6-16m |
|
National standard / JIS |
150*150 |
7 |
10 |
31.1 |
31.9 |
6-16m |
|
National standard / JIS |
175*90 |
5 |
8 |
18 |
18.2 |
6-16m |
|
National standard / JIS |
175*175 |
7.5 |
11 |
40.4 |
40.3 |
6-16m |
|
National standard / JIS |
194*150 |
6 |
9 |
29.9 |
31.2 |
6-16m |
|
National standard / JIS |
198*99 |
4.5 |
7 |
17.8 |
18.5 |
6-16m |
|
National standard / JIS |
200*100 |
5.5 |
8 |
20.9 |
21.7 |
6-16m |
|
National standard / JIS |
200*200 |
8 |
12 |
49.9 |
50.5 |
6-16m |
|
National standard / JIS |
200*204 |
12 |
12 |
56.2 |
56.7 |
6-16m |
|
National standard / JIS |
248*124 |
5 |
8 |
25.1 |
25.8 |
6-16m |
|
National standard / JIS |
250*125 |
6 |
9 |
29 |
29.7 |
6-16m |
|
National standard / JIS |
244*175 |
7 |
11 |
43.6 |
44.1 |
6-16m |
|
National standard / JIS |
250*250 |
9 |
14 |
71.8 |
72.4 |
6-16m |
|
National standard / JIS |
250*255 |
14 |
14 |
81.6 |
82.2 |
6-16m |
|
National standard / JIS |
298*149 |
5.5 |
8 |
32 |
32.6 |
6-16m |
|
National standard / JIS |
300*150 |
6.5 |
9 |
36.7 |
37.3 |
6-16mm |
|
National standard / JIS |
294*200 |
8 |
12 |
55.8 |
57.3 |
6-16m |
|
National standard / JIS |
298*201 |
9 |
14 |
64.4 |
65.9 |
6-16m |
|
National standard / JIS |
300*300 |
10 |
15 |
93 |
94.5 |
6-16m |
|
National standard / JIS |
294*302 |
12 |
12 |
83.4 |
85 |
6-16m |
|
National standard / JIS |
300*305 |
15 |
15 |
105 |
106 |
6-16m |
|
National standard / JIS |
346*174 |
6 |
9 |
41.2 |
41.8 |
6-16m |
|
National standard / JIS |
350*175 |
7 |
11 |
49.4 |
50 |
6-16m |
|
National standard / JIS |
340*250 |
9 |
14 |
78.1 |
79.7 |
6-16m |
|
National standard / JIS |
344*348 |
10 |
16 |
113 |
115 |
6-16m |
|
National standard / JIS |
350*350 |
12 |
19 |
135 |
137 |
6-16m |
|
National standard / JIS |
396*199 |
7 |
11 |
56.1 |
56.7 |
6-16m |
|
National standard / JIS |
400*200 |
8 |
13 |
65.4 |
66 |
6-16m |
|
National standard / JIS |
390*300 |
10 |
16 |
105 |
107 |
6-16m |
|
National standard / JIS |
388*402 |
15 |
15 |
140 |
141 |
6-16m |
|
National standard / JIS |
394*398 |
11 |
18 |
147 |
147 |
6-16m |
|
National standard / JIS |
400*400 |
13 |
21 |
172 |
172 |
6-16m |
