High - quality 6061 aluminum alloy bar

The 6061 aluminum alloy is a popular choice among engineers and fabricators due to its remarkable mechanical properties. With a tensile strength of up to 45,000 psi, this aluminum bar provides the durability required for demanding applications. Its lightweight nature makes it easy to handle and transport, while still offering the structural integrity needed for various projects.
One of the standout features of the 6061 Aluminum Bar is its excellent weldability and machinability. This means you can easily cut, shape, and join it to create custom components tailored to your specific requirements. Whether you’re fabricating parts for automotive, aerospace, or construction applications, this aluminum bar is the ideal material for achieving precision and reliability.

    Chemical Composition

    Element Percentage
    Al 98
    Cr 0.04 - 0.35
    Cu 0.15 - 0.40
    Fe 0.7 max
    Mg 0.8 - 1.2
    Mn 0.15 max
    Si 0.4 - 0.8
    Ti 0.15 max
    Zn 0.25 max

    Product Display

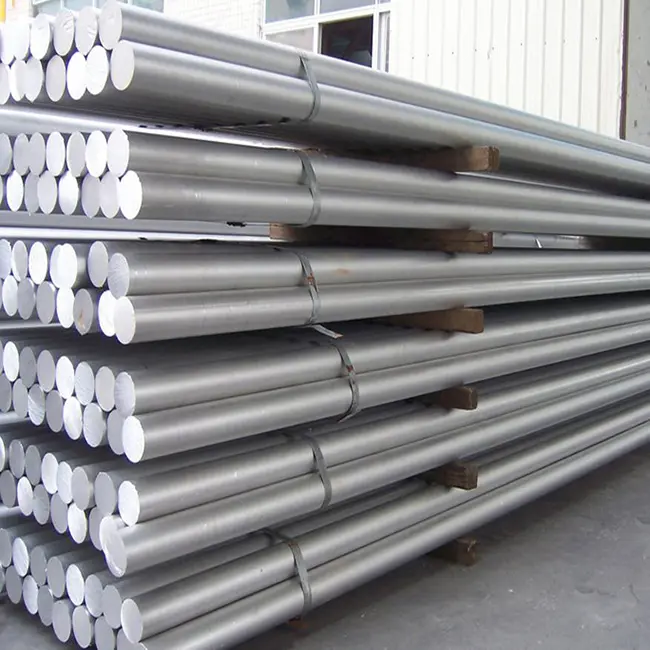

    • 6061 Aluminum Bar detail (3)

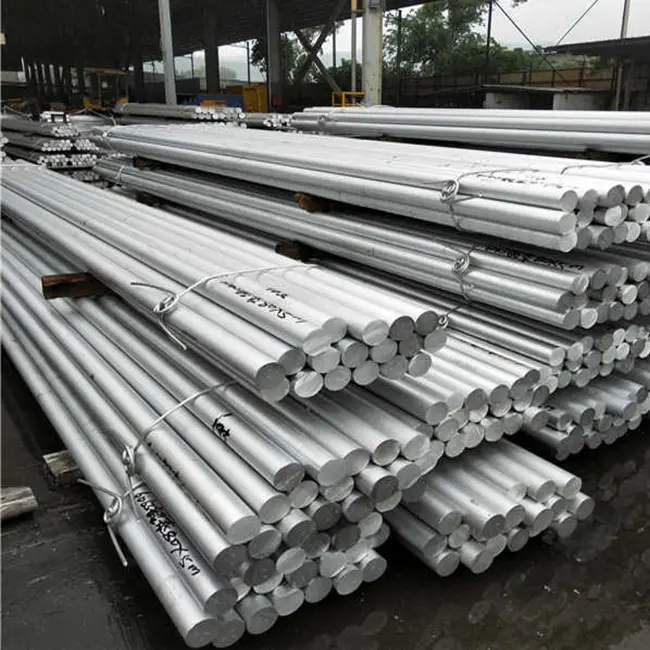

    • 6061 Aluminum Bar detail (2)

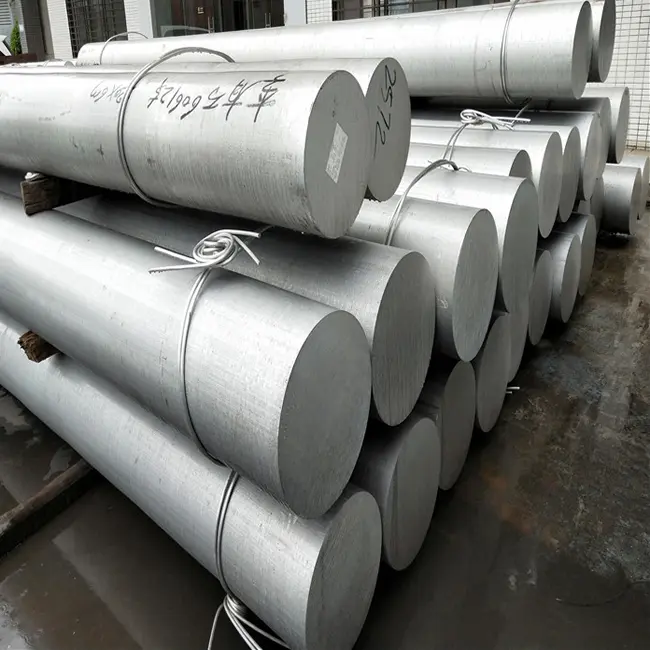

    • 6061 Aluminum Bar detail (1)

    Mechanical Information

      Imperial Metric
    Density 0.1 lb/in3 2.7 g/cc
    Ultimate Tensile Strength 45,000psi 310 MPa
    Yield Tensile Strength 40,000psi 276 MPa
    Fatigue Strength 14,000psi 96.5 MPa
    Shear Strength 30,000psi 207 MPa
    Melting Point 1,080 - 1,205°F 582 - 652°C
    Hardness Rockwell B60
    Hardness Brinell 95

    Available Sizes

    Size Length Weight (lbs/ft)
    1/8" x 3/4" 144.00" 0.110
    1/8" x 1" 144.00" 0.147
    1/8" x 1-1/4" 144.00" 0.180
    1/8" x 1-1/2" 144.00" 0.220
    1/8" x 2" 144.00" 0.294
    1/8" x 2-1/2" 144.00" 0.367
    1/8" x 3" 144.00" 0.441
    3/16" x 1/2" 144.00" 0.111
    3/16" x 3/4" 144.00" 0.165
    3/16" x 1" 144.00" 0.221
    3/16" x 1-1/4" 144.00" 0.276
    3/16" x 1-1/2" 144.00" 0.331
    3/16" x 2" 144.00" 0.441
    3/16" x 2-1/2" 144.00" 0.551
    3/16" x 3" 144.00" 0.662
    3/16" x 4" 144.00" 0.882
    1/4" x 3/8" 144.00" 0.110
    1/4" x 1/2" 144.00" 0.151
    1/4" x 3/4" 144.00" 0.220
    1/4" x 1" 144.00" 0.294
