High - grade galvanized channel, long - lasting
specification
|
Product Name |
Galvanized Channel Steel |
|
Material |
A36, St37, S235J0, S235J2, St52, S355JR, Q195, Q215, Q235B, Q345B, S235JR, S355JR, S355, SS440, SM400A, SM400B, A572 GR50/GR60, SS540 |
|
Scope of Production |
50*37*4.5-400*104*14.5, 75*40*3.8*7-152*76*6.4*9, 140*60*7*10-200*75*8.5*11.5 |
|
Length |
6m, 9m, 12m or according to customer requirements |
|
Technology |
Hot Rolled, Welded |
|
Standard |
ASTM, AISI, JIS, GB, DIN, EN |
|
Surface |
Galvanized, Painted or according to your requirements |
|
Supply Capacity |
2000 tons/Day |
|
Business Type |
Manufacturer |
|
Certificate |
ISO, SGS, BV |
|
Application |
Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc. |
|
Loading Port |
Any Port in China |
|
Packaging |
Standard export packing or as your request |
|
Payment Method |
Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal. |

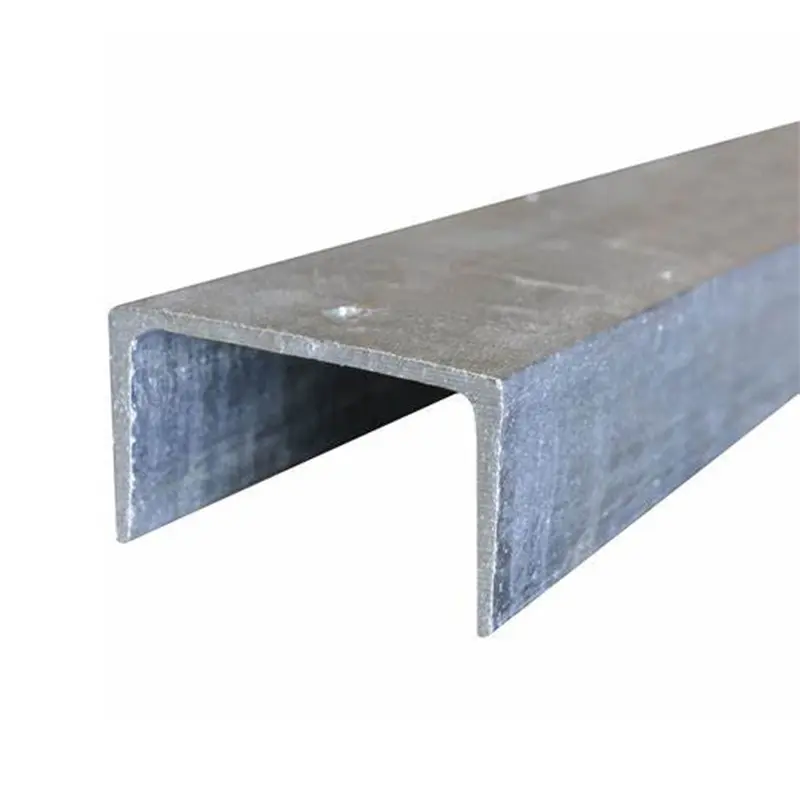

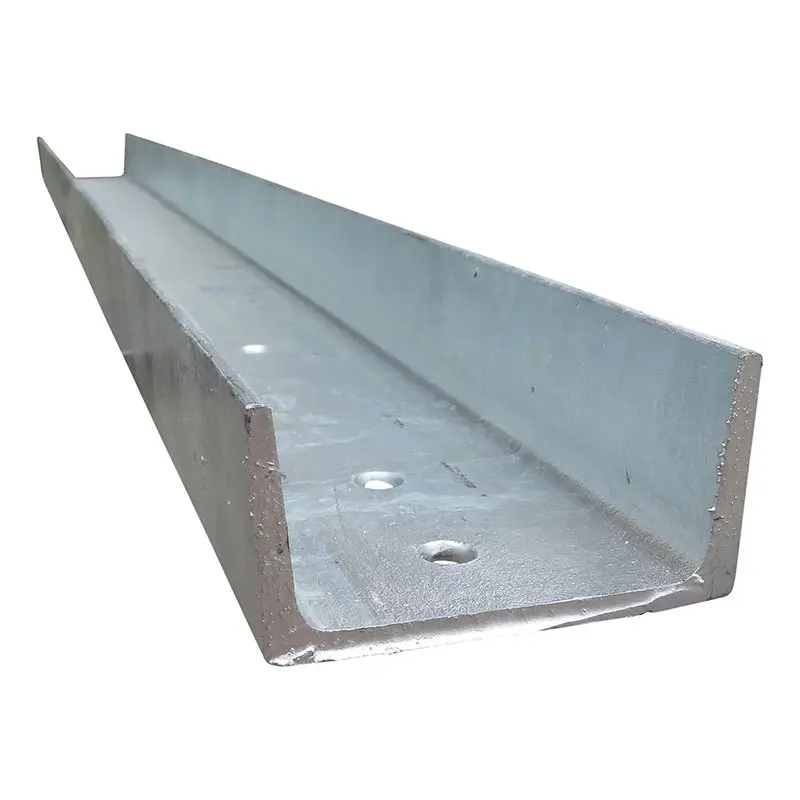

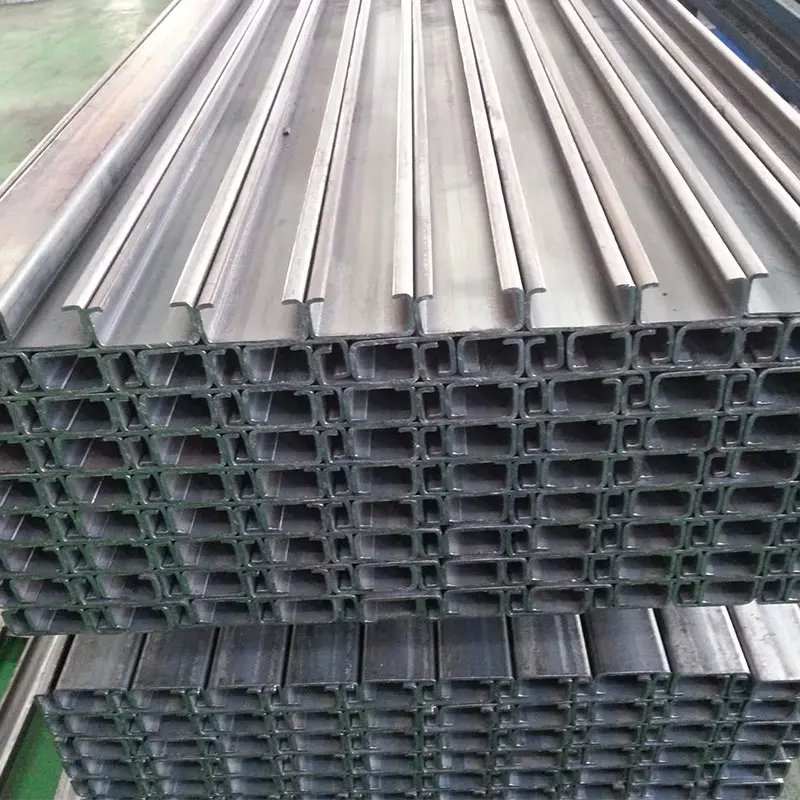

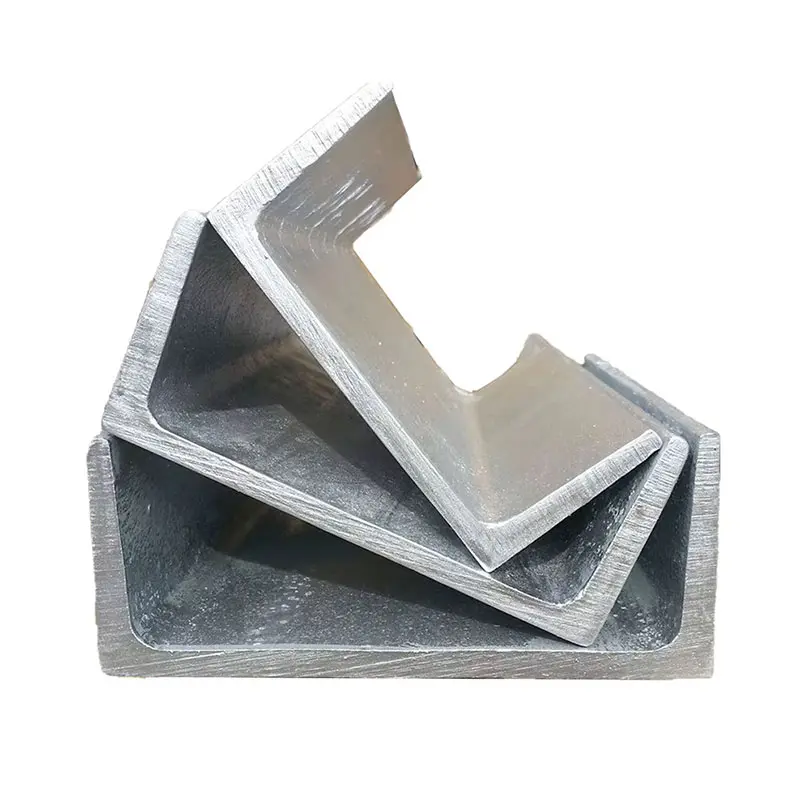

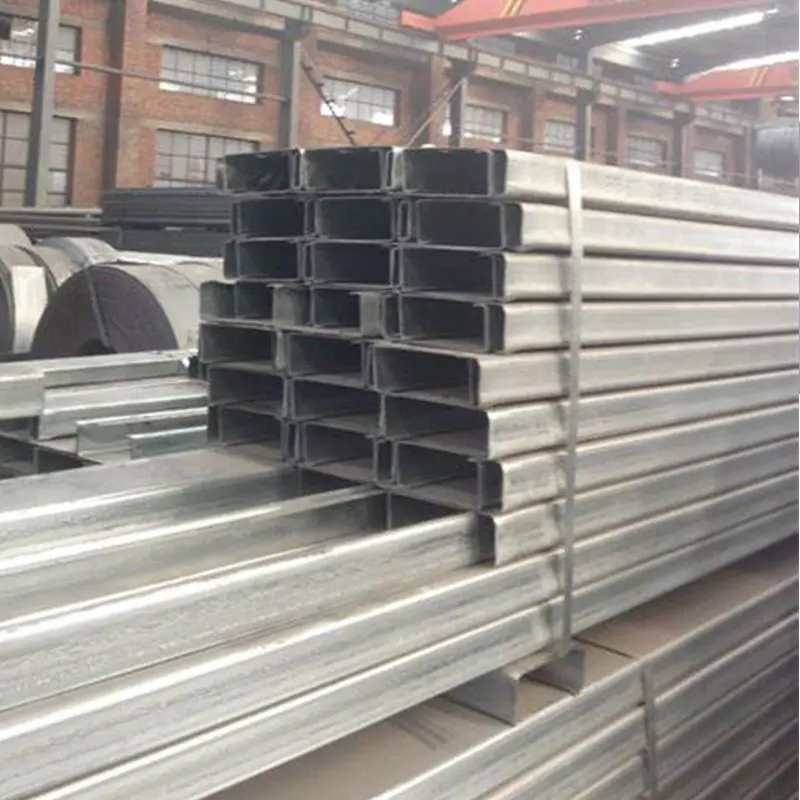

Product Display
Angle Steel specifications
|
Designation |
Section Dimensions (mm) |
|
|
|
Theoretical Weight (kg/m) |
|
|
h |
b |
d |
t |
|
|
5# |
50 |
37 |
4.5 |
7.0 |
5.438 |
|
6.3# |
63 |
40 |
4.8 |
7.5 |
6.634 |
|
8# |
80 |
43 |
5.0 |
8.0 |
8.046 |
|
10# |
100 |
48 |
5.3 |
8.5 |
10.007 |
|
12# |
120 |
53 |
5.5 |
9.0 |
12.059 |
|
14#a |
140 |
58 |
6.0 |
9.5 |
14.535 |
|
14#b |
140 |
60 |
8.0 |
9.5 |
16.733 |
|
16#a |
160 |
63 |
6.5 |
10.0 |
17.24 |
|
16#b |
160 |
65 |
8.5 |
10.0 |
19.752 |
|
18#a |
180 |
68 |
7.0 |
10.5 |
20.174 |
|
18#b |
180 |
70 |
9.0 |
10.5 |
23.0 |
|
20#a |
200 |
73 |
7.0 |
11.0 |
22.637 |
|
20#b |
200 |
75 |
9.0 |
11.0 |
25.777 |
|
22#a |
220 |
77 |
7.0 |
11.5 |
24.999 |
|
22#b |
220 |
79 |
9.0 |
11.5 |
28.453 |
|
25#a |
250 |
78 |
7.0 |
12.0 |
27.41 |
|
25#b |
250 |
80 |
9.0 |
12.0 |
31.335 |
|
25#c |
250 |
82 |
11.0 |
12.0 |
35.26 |
|
28#a |
280 |
82 |
7.5 |
12.5 |
31.427 |
|
28#b |
280 |
84 |
9.5 |
12.5 |
35.823 |
|
28#c |
280 |
86 |
11.5 |
12.5 |
40.219 |
|
30#a |
300 |
85 |
7.5 |
13.0 |
34.463 |
|
30#b |
300 |
87 |
9.5 |
13.0 |
39.173 |
|
30#c |
300 |
89 |
11.5 |
13.0 |
43.883 |
|
32#a |
320 |
88 |
8.0 |
13.5 |
38.083 |
|
32#b |
320 |
90 |
10.0 |
13.5 |
43.107 |
|
32#c |
320 |
92 |
12.0 |
13.5 |
48.131 |
|
36#a |
360 |
96 |
9.0 |
14.0 |
47.814 |
|
36#b |
360 |
98 |
11.0 |
14.0 |
53.466 |
|
36#c |
360 |
100 |
13.0 |
14.0 |
59.118 |
|
40#a |
400 |
100 |
10.5 |
14.5 |
58.928 |
|
40#b |
400 |
102 |
12.5 |
14.5 |
65.208 |
|
40#c |
400 |
104 |
14.5 |
14.5 |
71.488 |
