Growing need for hot - rolled alloy tubes
specification
|
Product Name |
Hot rolled alloy tube |
|
Standard |
ASTM,JIS,DIN,GB,AISI,DIN,EN |
|
Material |
16Mn、Q345、12Cr1MoV、20CrMo、304、316、6061、7075、Ti-6Al-4V |
|
Outer diameter range |
.Small diameter tube: The outer diameter is generally between 10mm and 100mm. .Medium diameter pipe: The outer diameter is generally between 100mm and 200mm. .Large diameter pipe: The outer diameter is generally 200mm to 500mm or larger. |
|
Thickness range |
.Small wall thickness tube: generally between 1mm and 5mm. .Medium wall thickness pipe: generally between 5mm and 15mm. .Large wall thickness pipe: generally 15mm to 30mm or thicker. |
|
Length range |
Customized length according to customer's special requirements. |
|
Error |
±1% |
|
Certification |
ISO 9001 ，CE，API |
|
Surface treatment |
Pickling、Sandblasting、Galvanized、Painting、Heat treatment、Electroplating、Phosphating |
|
Country of origin |
China |
|
Main Applications |
1.Oil and Gas Industry: Pipeline systems used to transport oil, natural gas and related products. |
|
2.Chemical industry: used in chemical equipment, reactors, pipelines and storage tanks, etc., to withstand high temperature and high pressure environments. |
|
|
3.Architectural and Structural Engineering: As a supporting material for building structures, it is widely used in bridges, buildings and other structures. |
|
|
4.Mechanical manufacturing: used to manufacture mechanical parts, bearings, transmission shafts, etc., requiring high strength and wear resistance. |
|
|
5.Automobile industry: Used in automobile chassis, exhaust systems and other parts, requiring light weight and high strength. |
|
|
6.Aerospace: Used for structural parts of aircraft and spacecraft, requiring high strength and high temperature resistance. |
|
|
7.Electric power industry: used in boilers, heat exchangers and other equipment, bearing high temperature and high pressure. |
|
|
8.Shipbuilding: Used for hull structures and piping systems, which require corrosion resistance and strength. |
|
|
Package |
Simple packaging, reinforced packaging, wooden frame, metal frame, pallet, wrapping |
|
Payment Term |
TT, LC,Cash, Paypal, DP, DA,Western Union or Others. |
|
After-sales service |
1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection |

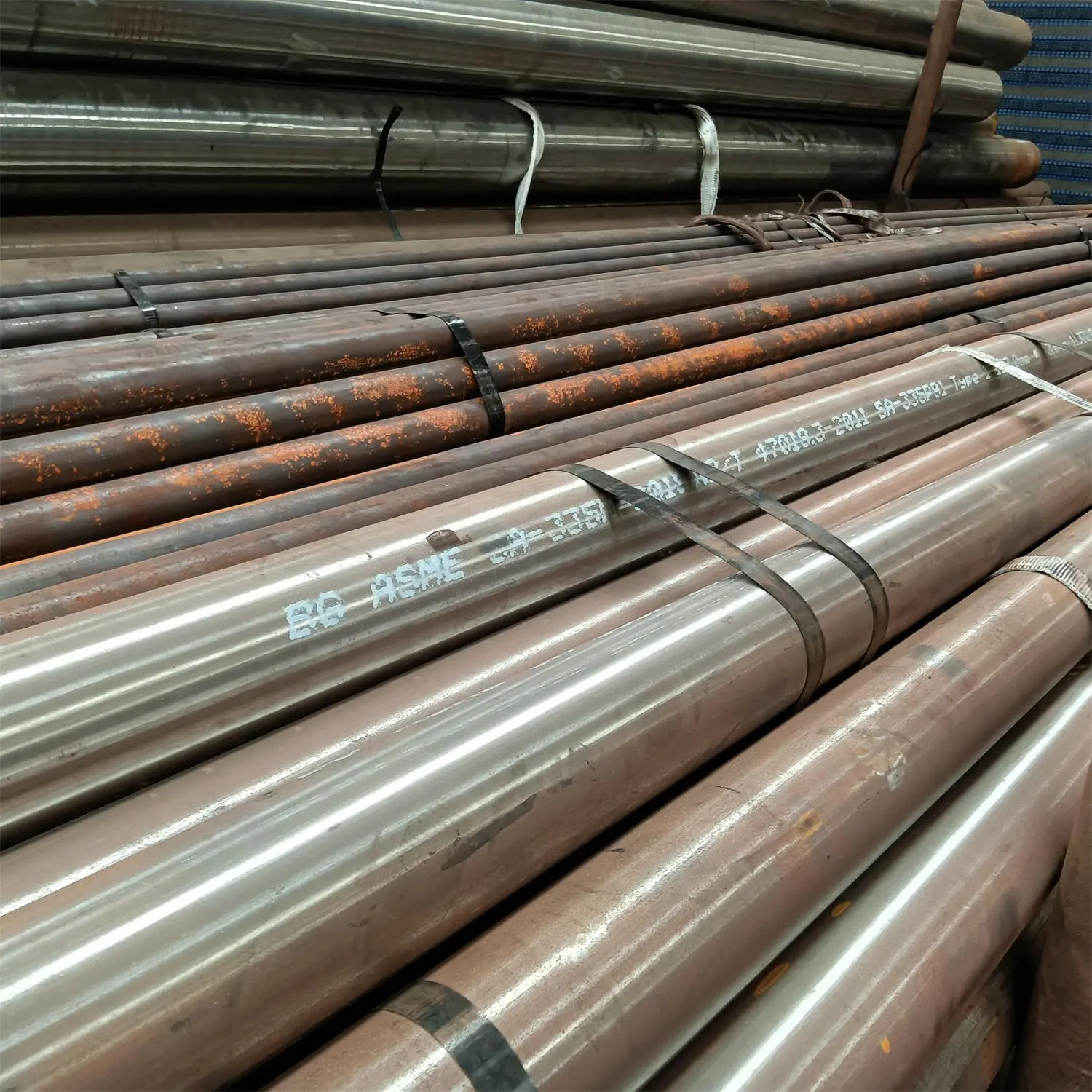

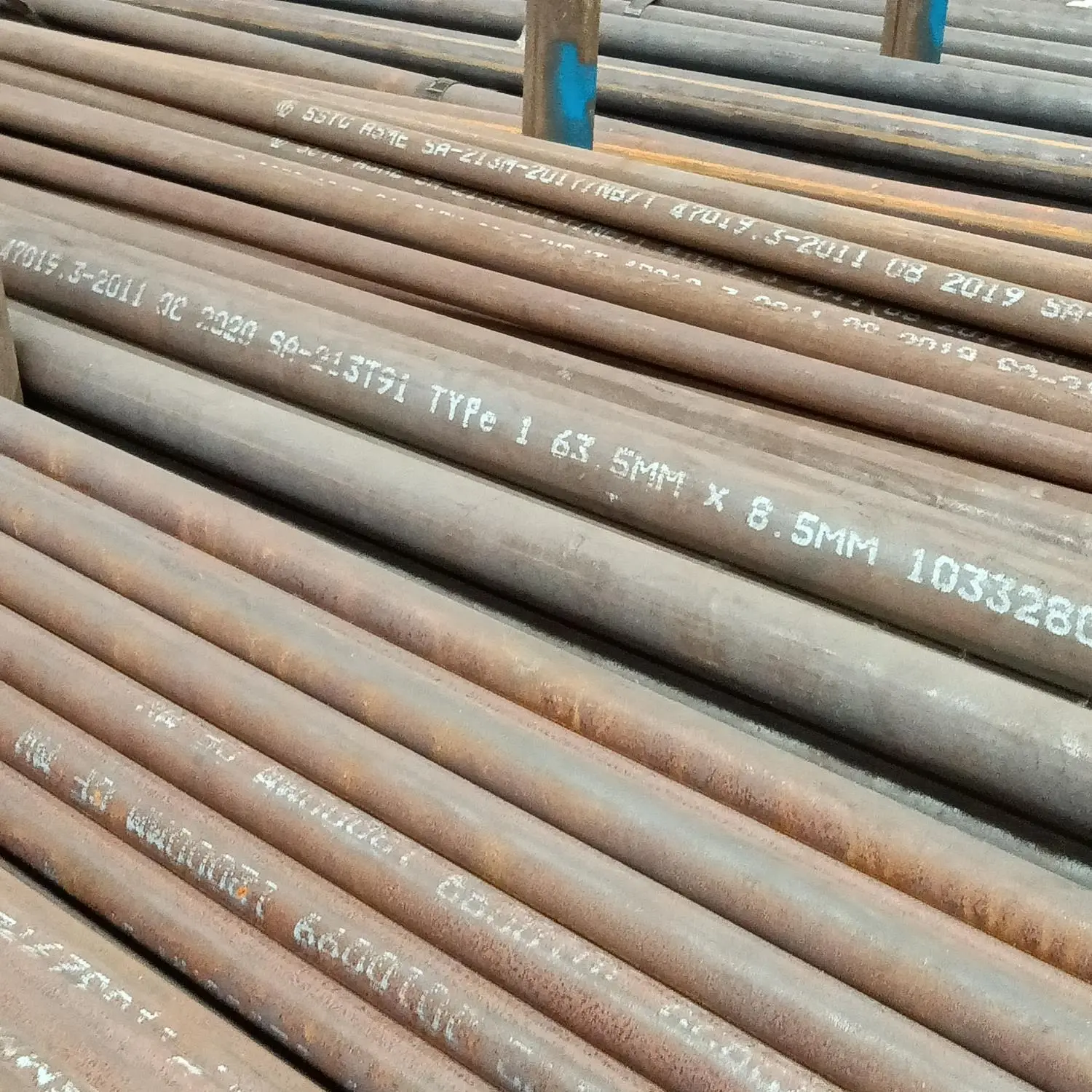

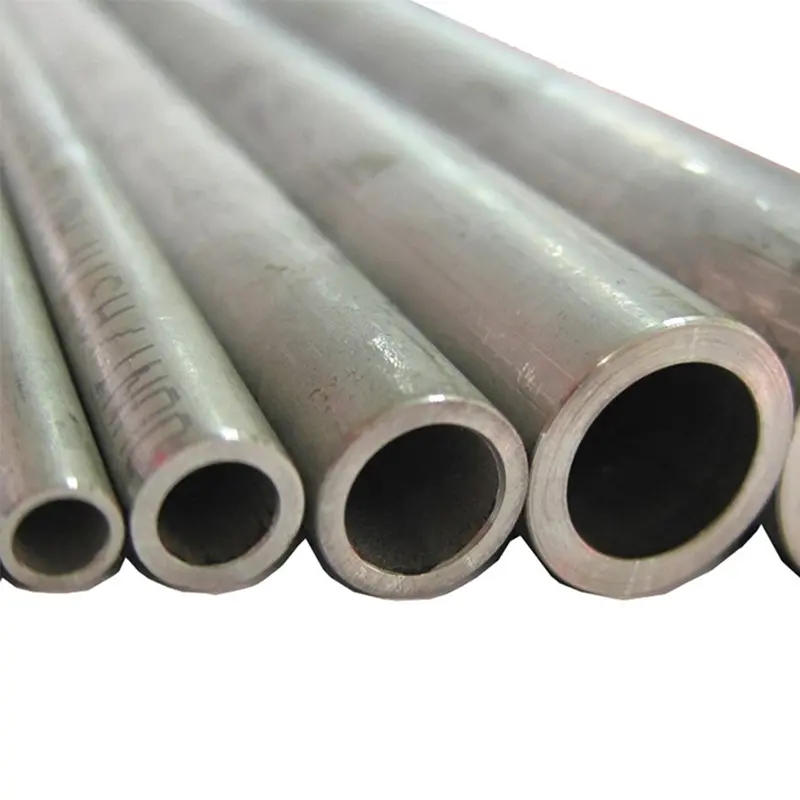

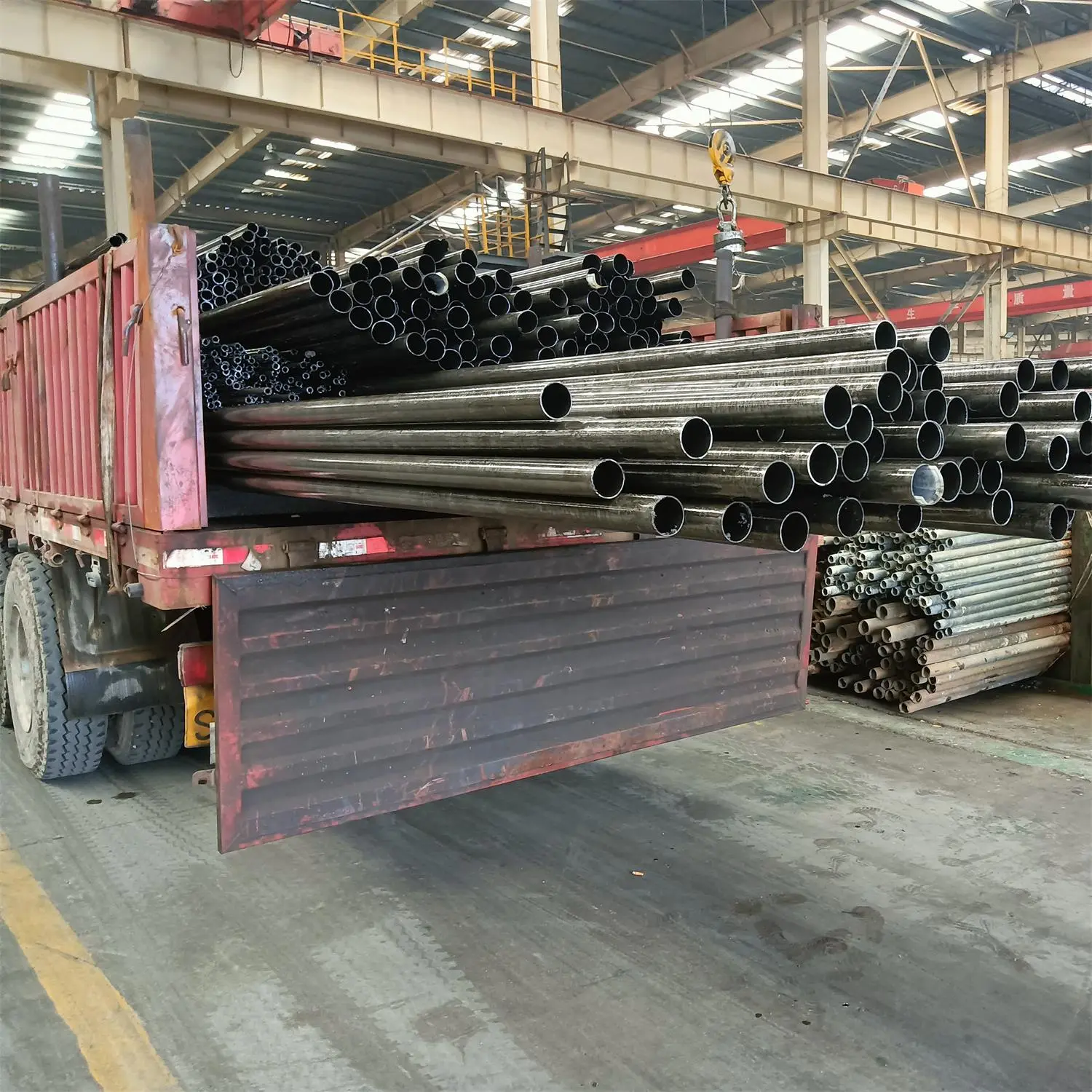

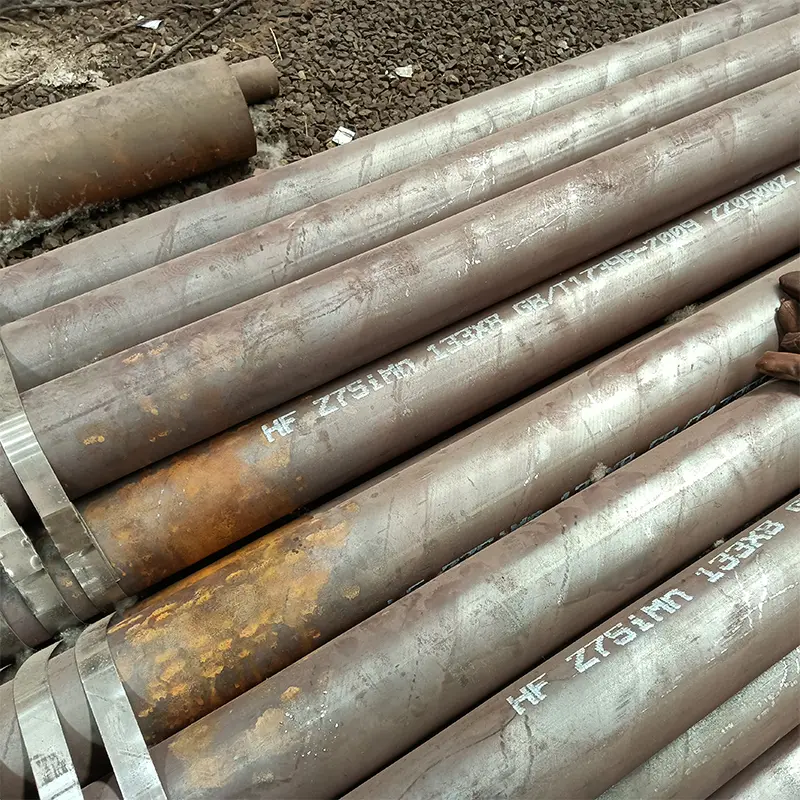

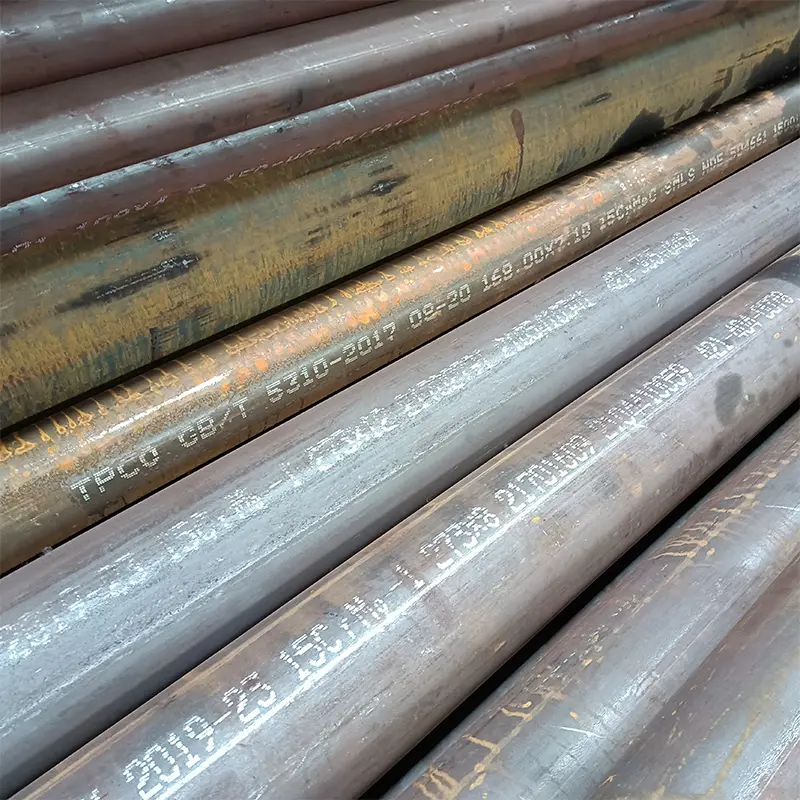

Product Display
Production process
.Raw material preparation:
Select appropriate alloy steel billet, usually round or square steel, and ensure its chemical composition and physical properties meet the requirements.
.Heating:
The steel billet is heated to a certain temperature (usually between 1100°C and 1250°C) to make it plastic for subsequent rolling.
.Hot rolling:
The heated billet is sent to the hot rolling mill for rolling. Through multiple rolling passes, the billet is gradually transformed into the required outer diameter and wall thickness of the pipe.
During the rolling process, different rolling methods may be used, such as continuous rolling or intermittent rolling.
.Tube forming:
During the rolling process, the inner and outer diameters of the tube are gradually formed, usually by processes such as extrusion or tube expansion.
.Cooling:
After hot rolling, the pipe needs to be cooled, usually by natural cooling or water cooling, to control the structure and properties of the pipe.
.Cutting:
Cut the cooled alloy tube into required lengths, usually customized according to customer requirements.
.Surface treatment:
Surface treatment of pipes, such as pickling, sandblasting, galvanizing, etc., to improve their corrosion resistance and aesthetics.
.Inspection:
Carry out quality inspection on finished pipes, including appearance inspection, dimension measurement, mechanical property testing, etc., to ensure that they meet relevant standards and customer requirements.
.Packaging and Shipping:
Qualified pipes are packaged and ready to be shipped to customers.
