DIN 17155 Pressure Vessel Steel Plate

DIN 17155 is a German standard that specifies the requirements for pressure vessel steel plates, ensuring they can withstand high temperatures and pressures without compromising safety or performance. These plates are manufactured using advanced metallurgical processes, resulting in a product that boasts excellent weldability and formability. The steel is available in various grades, each tailored to specific applications, ensuring that you can find the perfect match for your project needs.

product details

specification

Product Name	DIN 17155 Pressure Vessel Steel Plate
Standard	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Width	45mm-2200mm
Production Process	Hot Rolling, Cold Rolling
Error	±1%
Certification	ISO 9001 ，CE，API
Surface treatment	Rolling, Annealing, Quenching, Tempered or Standard
Country of origin	China
Main Applications	Building Structure、Bridges、Mechanical manufacturing、Shipbuilding、Automobile Industry、Pipelines and Tanks、Furniture and Equipment
Package	Bundling packaging、Anti-rust treatment、Wooden Pallet or Steel Pallet、Plastic film wrapping、Containerized shipping、Identification and labeling
Payment Term	TT, LC,Cash, Paypal, DP, DA,Western Union or Others.
After-sales service	1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection

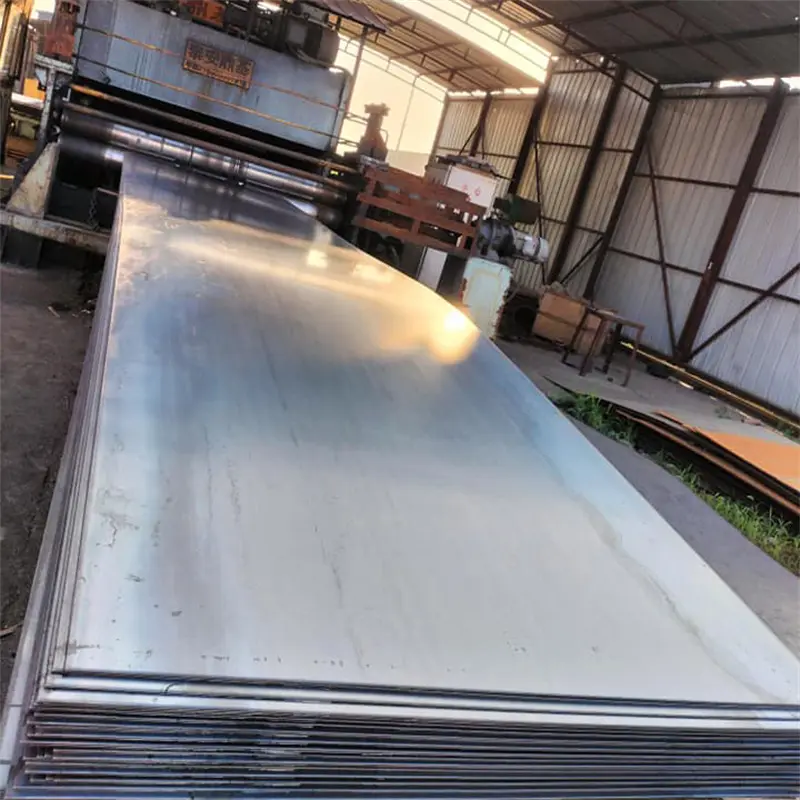

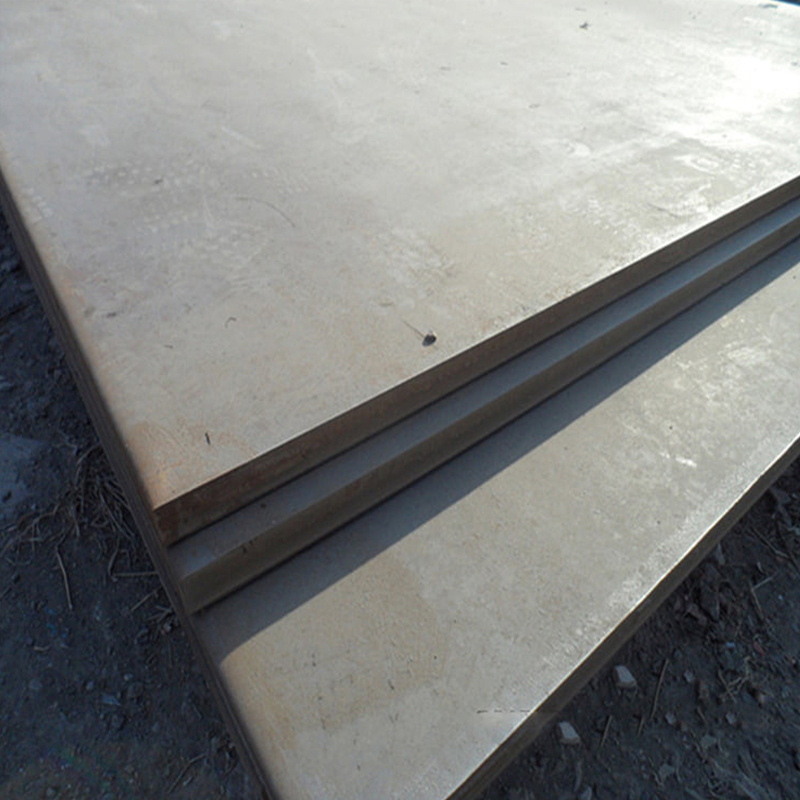

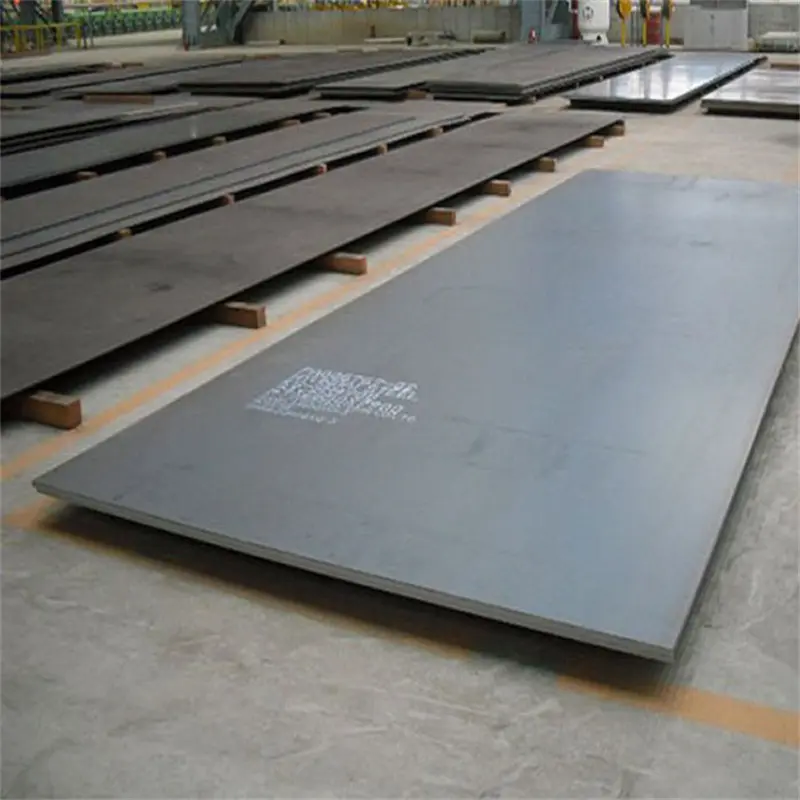

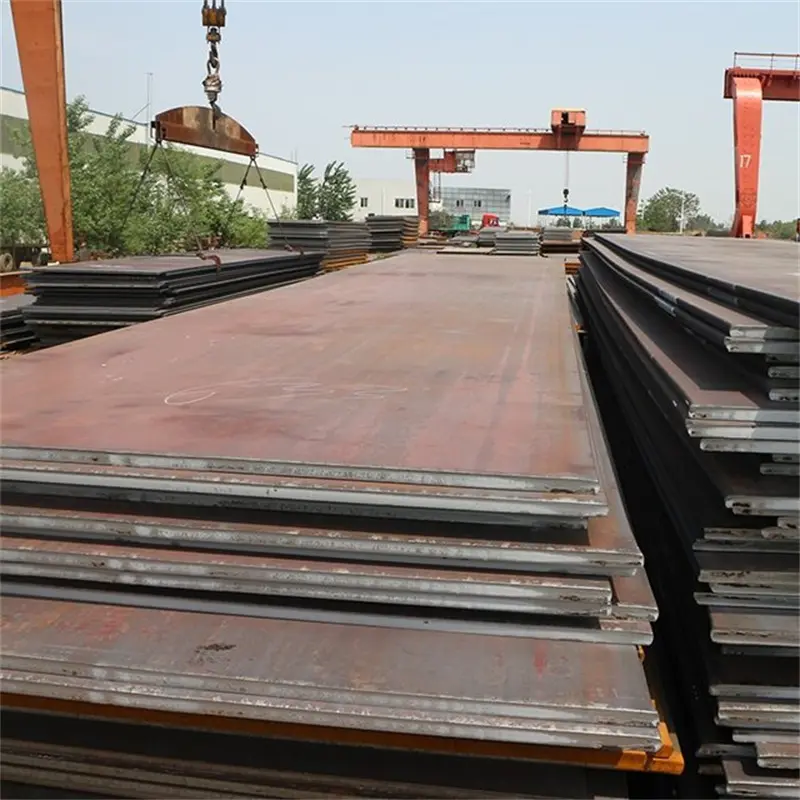

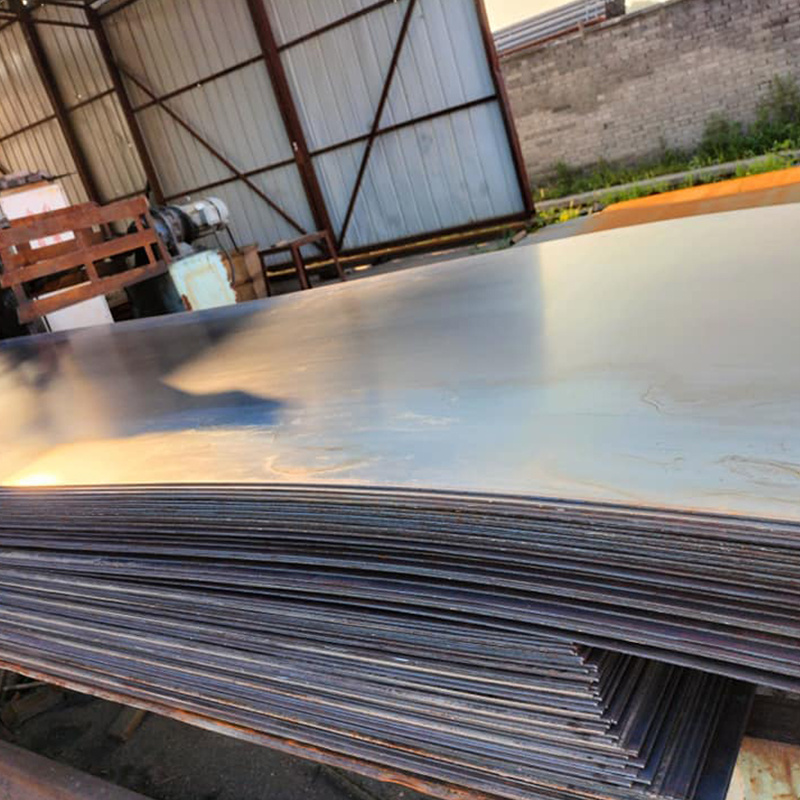

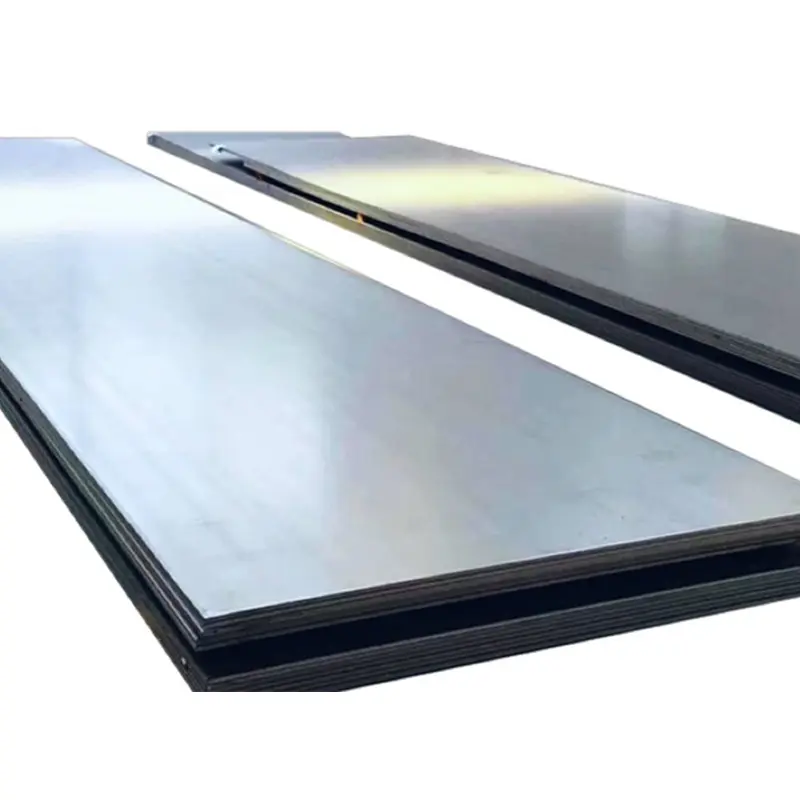

Product Display

Chemical Composition

DIN 17155	C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo
15Mo3	0.12-0.20	0.10-0.35	0.40-0.90	0.035	0.03		0.25	0.3	0.3	0.25-0.35
13CrMo44	0.08-0.18	0.10-0.35	0.40-0.10	0.035	0.03		0.70-1.10	0.3		0.4-0.6
17Mn4	0.14-0.20	0.4	0.90-1.40	0.035	0.03	0.02	0.25	0.3	0.3	0.1
10CrMo9-10	0.06-0.15	0.5	0.40-0.70	0.035	0.03		2.00-2.50	0.3		0.9-1.0
19Mn6	0.2	0.5	0.90-1.70	0.03	0.025	0.02	0.3	0.3	0.3	0.08
HI	0.16	0.35	0.40/1.20	0.03	0.025	0.02	0.3	0.3	0.3	0.08
HII	0.2	0.35	0.50-1.30	0.035	0.03	0.02	0.25	0.3	0.3	0.1

Equivalent Material

DIN 17155	Material No.	EN 10028-2	UNI 5869	BS 1501	A 36087	ASTM	JIS G3115
HI	1.0345	P235GH	Fe 360 - 1KW	161 Gr. 360 / 164 Gr. 360	A 37 RCI	A 285 Gr. C-A 414 Gr. C/ A 516 Gr. 55	SPV 24
HII	1.0425	P265GH	Fe 410 - 1KW	161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400	A 42 RCI	A 414 Gr. E / A 516 Gr. 60
17Mn4	1.0481	P295GH	Fe 460 - 1KW	224 Gr. 490	A 47 RCI	A 414 Gr. F / A 516 Gr. 65	SPV 32
19Mn6	1.0473	P355GH	Fe 510 - 1KW		A 52 RCI	A 414 Gr. G	SPV 36
15Mo3	1.5415	16Mo3	15 Mo 3	1503 - 243 B	16Mo3	A 204 Gr. B
13CrMo44	1.7335	13CrMo4-5	14 CrMo 4.5	620 Gr. 27	14 CrMo 4.5	A 387 Gr. 12
10CrMo910	1.7380	10CrMo9-10		622 Gr. 31		A 387 Gr. 22
