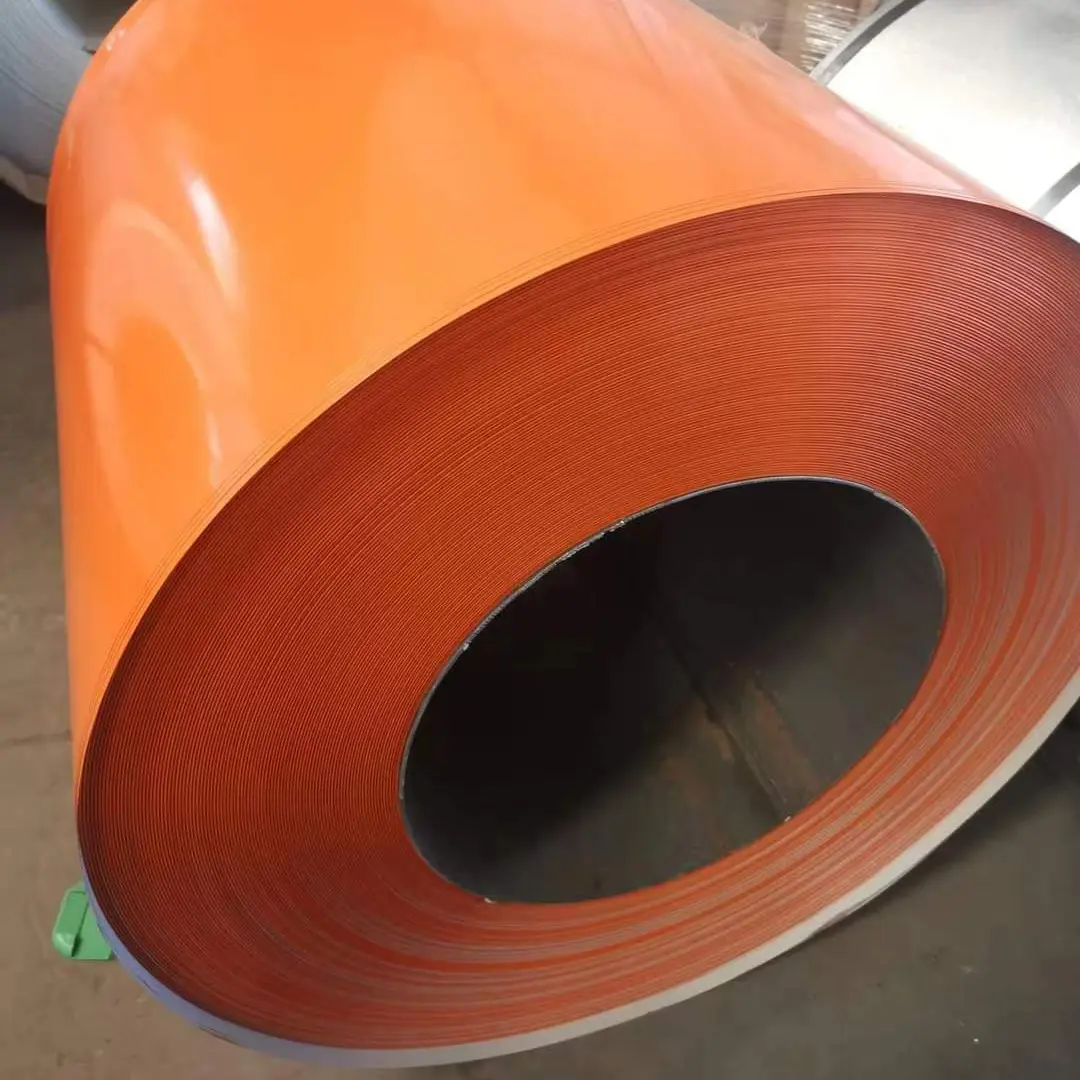

Color Coated Galvanized Steel Coil PPGI

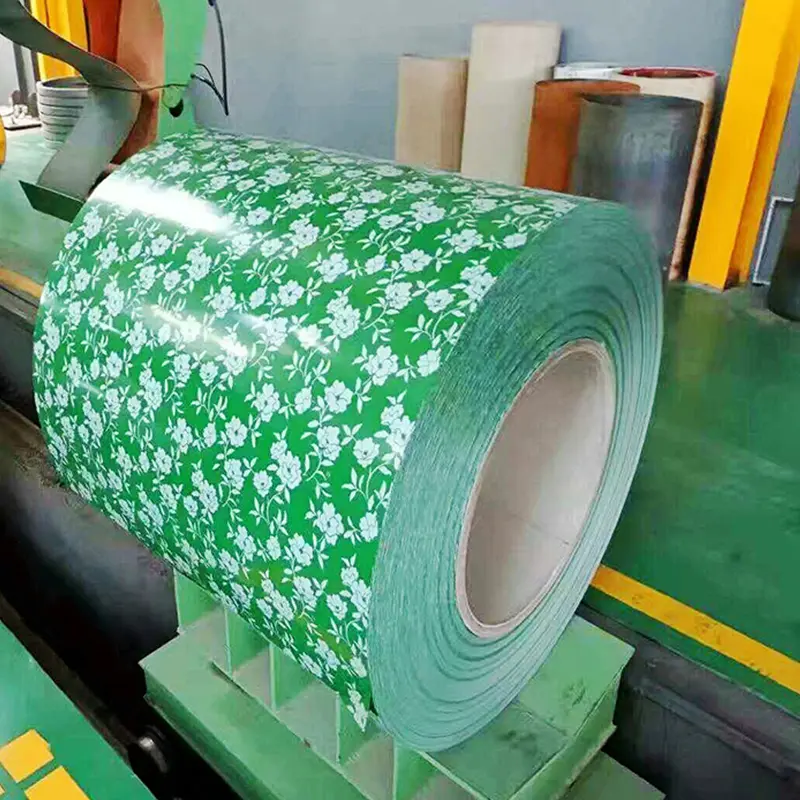

Our Pattern Printing Pattern Color Coating Coil features a unique printing technology that ensures high-resolution patterns with exceptional clarity and detail. Each coil is meticulously crafted to provide a stunning visual appeal, allowing you to express your creativity and style effortlessly. Whether you’re looking to add a splash of color to your living space or create eye-catching displays for your business, this product delivers on all fronts.
The versatility of our coils is unmatched. Available in a variety of patterns and colors, you can easily find the perfect match for your design needs. The durable coating not only enhances the aesthetic appeal but also provides protection against wear and tear, ensuring that your projects maintain their beauty over time. This makes our coils ideal for both indoor and outdoor applications, giving you the freedom to explore your creative vision without limitations.

product details

specification

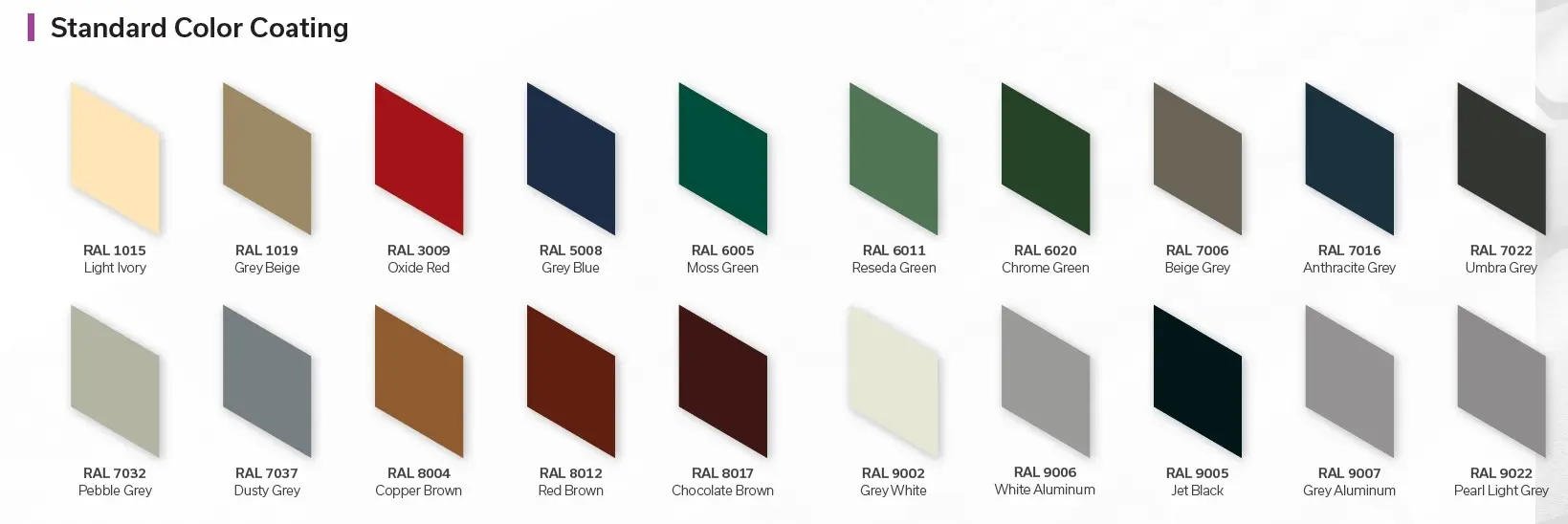

Standard	JIS G3322 CGLCC ASTM A755 CS-B	Surface coating color	RAL colors
Back side coatingcolor	Light grey ,white and so on	Package	export standard package or as request
Type of coating process	Front: double coated&double drying. Back: double coated&double drying, single-coated&double drying
Type of substrate	hot dipped galvanzied, galvalume, zinc alloy, cold rolled steel, aluminum
Thickness	0.16-1.2mm	Width	600-1250mm
Coil Weight	3-9Tons	Inside Diameter	508mm Or 610mm
Zinc Coating	Z50-Z275G	Painting	Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um
Coating introduction	Top paint: PVDF, HDP, SMP, PE, PU
	Prime paint: Polyurethane, Epoxy, PE
	Back paint: Epoxy, Modified polyester
Productivity	150,000Tons/year

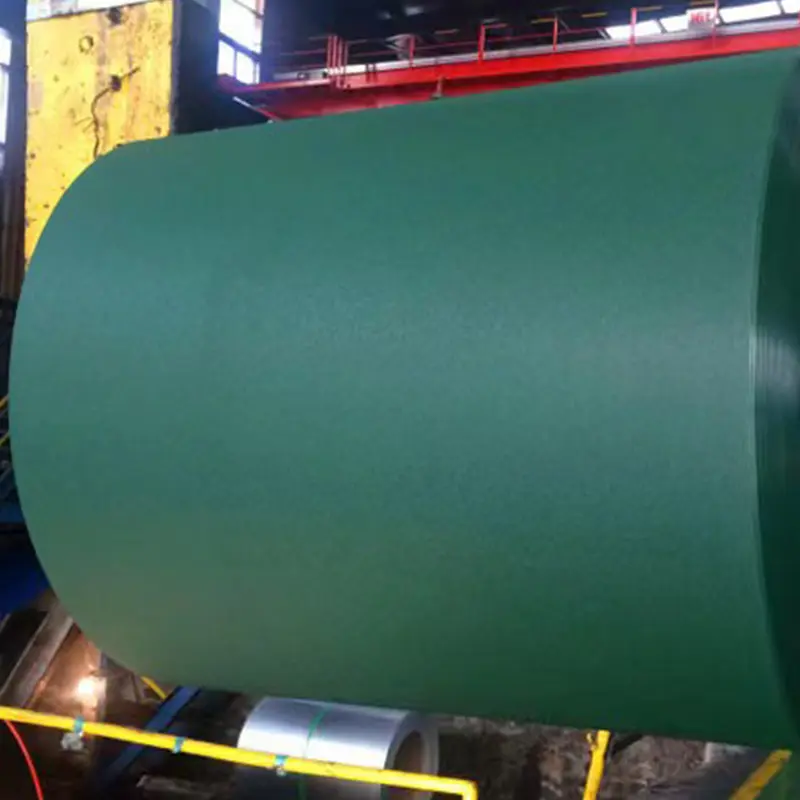

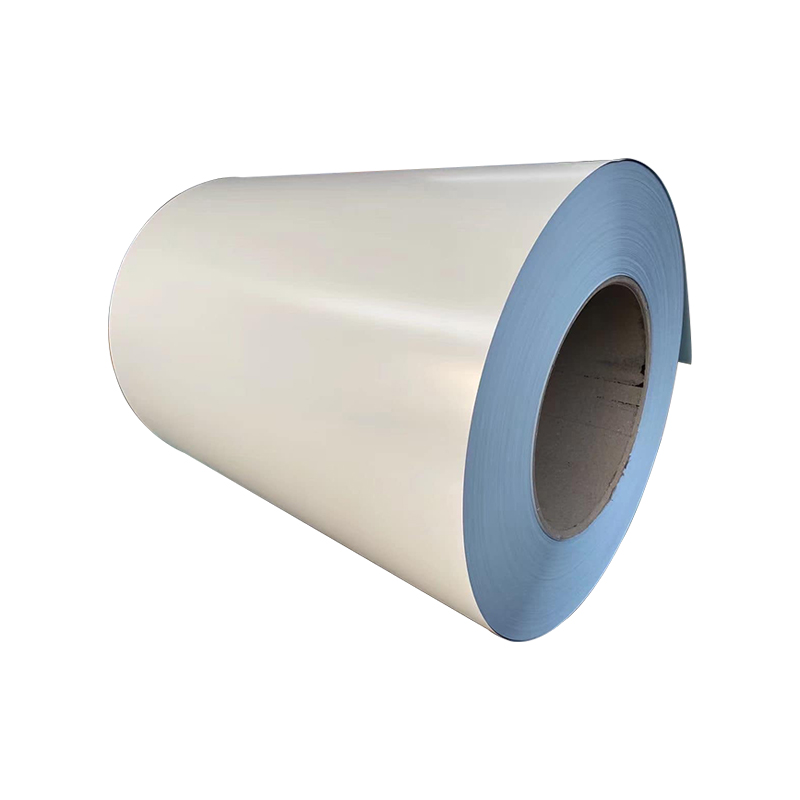

Product Display

Product Specification and Size

PPGI / PPGL / PPGF

Product Type	Pre-Painted Hot-Dip Galvanized Steel Coil (PPGI)	Pre-Painted Hop-Dip 5% Al-Zn Coated Steel Coil (PPGF)	Pre-Painted Hop-Dip 55% Al-Zn Coated Steel Coil (PPGL)	Pre-Painted Embossed Steel Coil
Coating Types	1. Polyester (PE) 2. Silicone Modified Polyester (SMP) 3. Acrylic 4. Polyvinylidene Difluoride (PVDF)			PVC Plastisol
Specifications	CNS 10804 (2013) CNS 15298 (2013) CNS 15299 (2013) JIS G3312 (2013) CGCC CGCD1~3 CGC340 CGC400 CGC440 CGC490 CGC570 JIS G3318 (2013) CZACC CZACH CZACD1 CZAC340 CZAC400 CZAC440 CZAC490 CZAC570 JIS G3322 (2013) CGLCC CGLCD CGLC400 CGLC440 CGLC490 CGLC570 ASTM A755M (2016) AS 2728 (2013) EN 10169+A1 (2010)			JIS K6744 (2007) SG SA ASTM A755M (2016) EN 10169+A1 (2010)
Coating Types	Primer: PU or Epoxy 5μm Topcoat: 15-20μm Back Primer: PU or Epoxy 2μm Back Coat: PE or Epoxy 5-12μm			Primer: Epoxy Topcoat: PVC PLASTISOL 150- 250μm Back Primer: PU or Epoxy 2μm Back Coat: PVC PLASTISOL 100 - 250μm or Epoxy 7μm

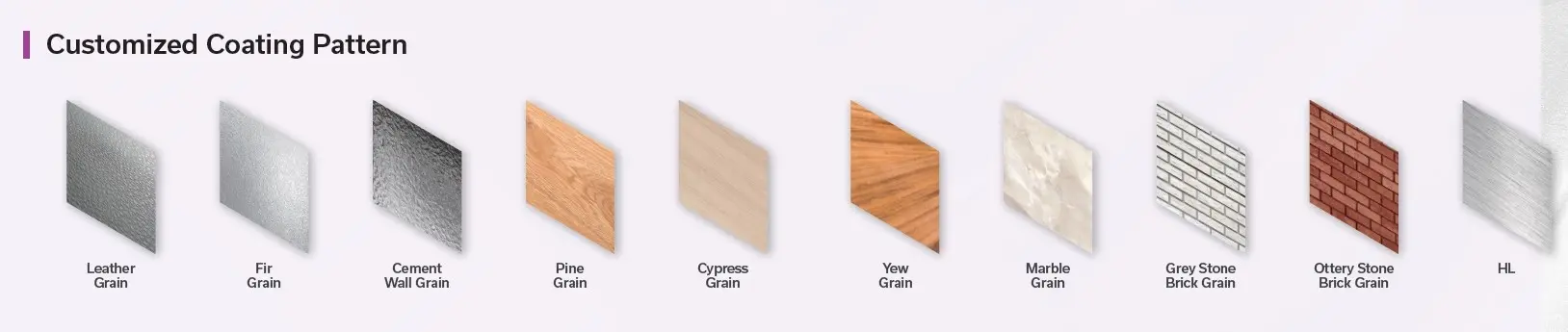

Surface Treatment	Protective film can be applied Metal Embossed Cedar wood Stucco Leather			PVC Embossed Leather Lichee
Remarks	1. The ASTM standards presented here adopt the equivalent metric system. (The imperial system deletes the “M" after their specification number, such as A755 and A792.) 2. Coating thickness is for reference only.

Available Size

Name	Thickness	Width
Pre-painted Hot-dip Galvanized Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 5% Al-Zn Coated Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 55% Al-Zn Coated Steel Coil	0.2~1.38mm	600~1250mm
