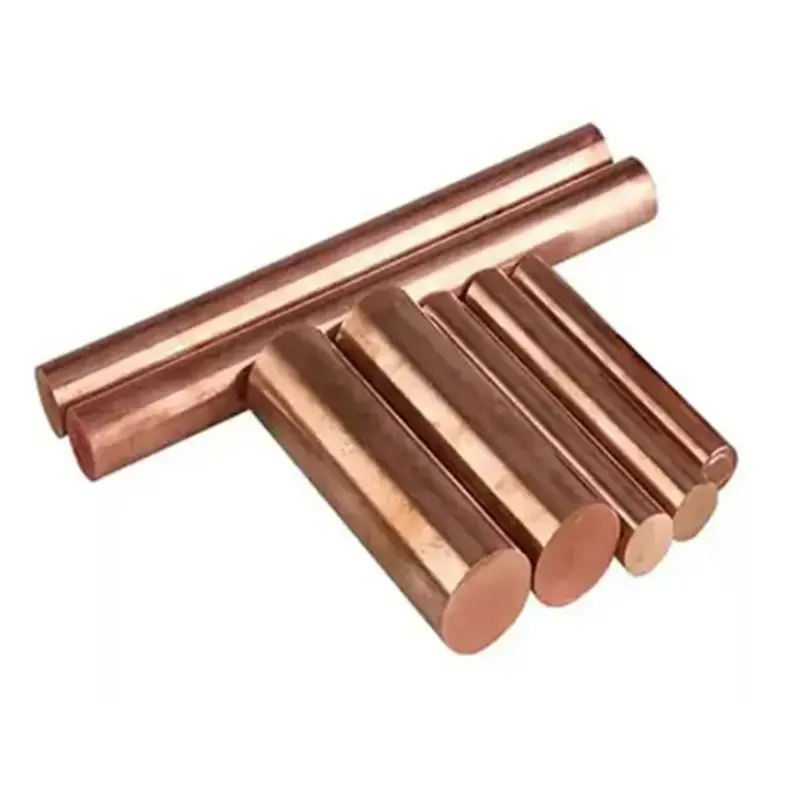

C11000/T2 copper bar with good conductivity
specification
|
Product Name |
C11000/T2 Copper Bar |
||
|
Diameter |
3mm-800mm, or customized |
Length |
500-12000mm, or customized |
|
Processing |
Customized |
Standard |
ASTM, AISI, JIS, GB, DIN, EN |
|
Brand |
C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910, C10920, C10930， C11000, C11300, C11400, C11500, C11600, C12000, C12200, C12300, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C65500, C68700, C70400, C70620, C71000, C71500, C71520, C71640, C72200， T1, T2, T3, TU1, TU0, TU2, TP1, TP2, TAg0.1, ect. |
||
|
Surface |
Grinding, Polishing, Brightening, Oiling, Hair Thread, Brush, Mirror, Sandblasting or Processing As Required |
||
|
Certification |
ISO, SGS, BV |
Payment Method |
FOB, CRF, CIF, EXW Acceptable |
|
Port of Loading |
Any port in China |
Delivery Time |
Received 30% after deposit 7-15 working days |

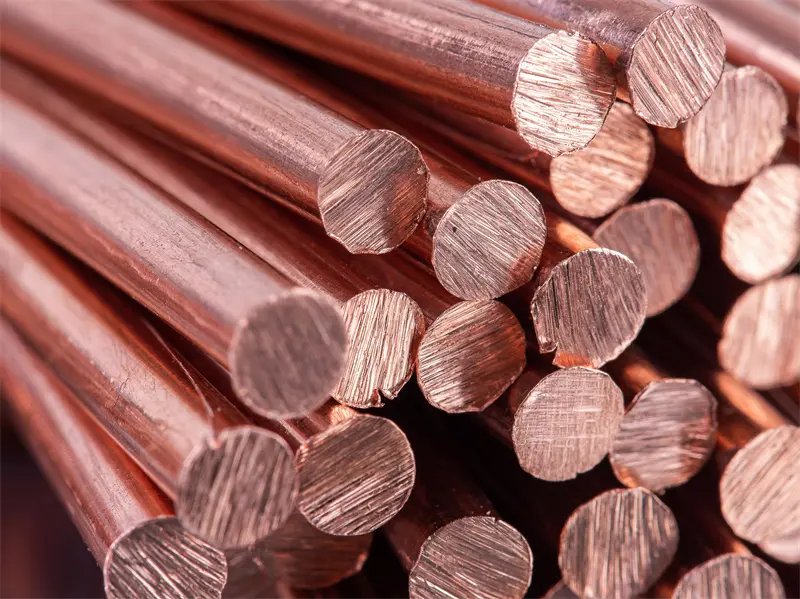

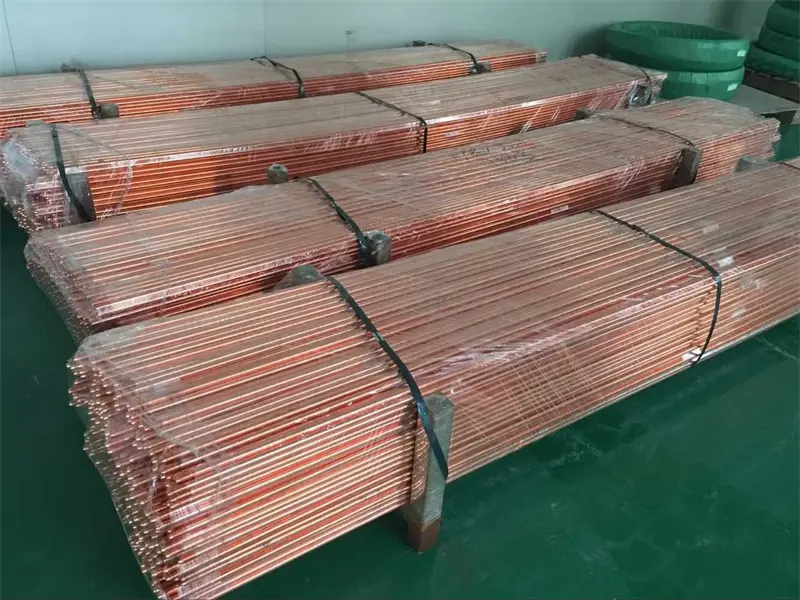

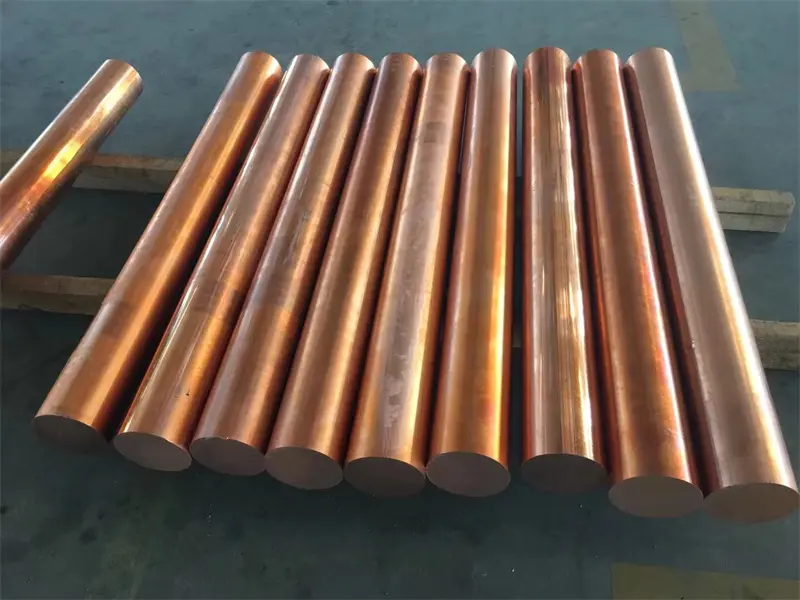

Product Display
Chemical Composition
|
Copper+Silver With Ag |
Tin Sn |
Zinc Zn |
Lead Pb |
Nickel It is |
Iron Fe |
|
≥ 99.90 |
≤ 0.002 |
≤ 0.005 |
≤ 0.005 |
≤ 0.005 |
≤ 0.005 |
|
Antimony Sb |
Sulphur S |
Arsenic As |
Bismuth Bi |
Oxygen O |
Impurity |
|
≤ 0.002 |
≤ 0.005 |
≤ 0.002 |
≤0.001 |
≤ 0.06 |
≤0.1 |
Mechanical Properties
|
Tensile Strength Kb (MPa) |
Elongation D10 (%) |
Elongation D5 (%) |
|
≥ 275 |
≥ 5 |
≥10 |
