6061 aluminum plate: strong yet lightweight
specification
|
Product Name |
6061 Aluminum Plate |
|
Standard |
ASTM,AISI,SUS,JIS,EN,DIN,BS,GB |
|
Finish(Surface) |
Bright |
|
Grade |
1020/1050/1060/1100/2011/2014/2017/2024/2A12/3003/3009/3A21/3A1 2/4004/4032/4047/5052/5083/5182/6061/6063/6082/7050/7A04 |
|
Standard Thickness |
0.1mm-50mm , can be customized |
|
Standard Width |
1000mm/1250mm/1500mm, can be customized |
|
Additional Services |
Welding/Punching/Cutting/Bending/Decoiling |
|
Package Details |
Standard seaworthy package(protected by waterproof paper,wrapped in iron sheet, fixed by steel bars) |

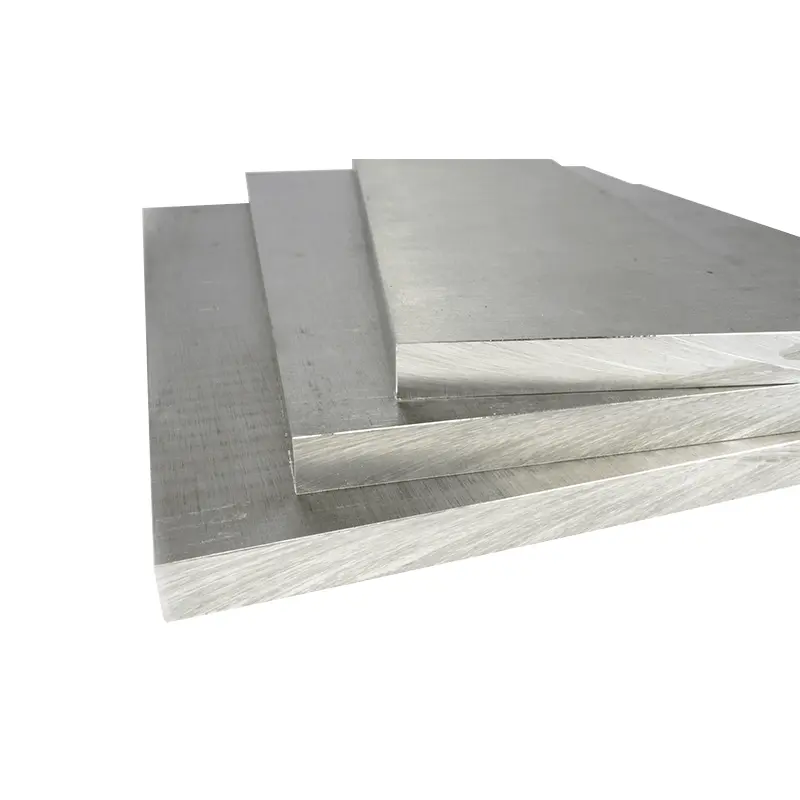

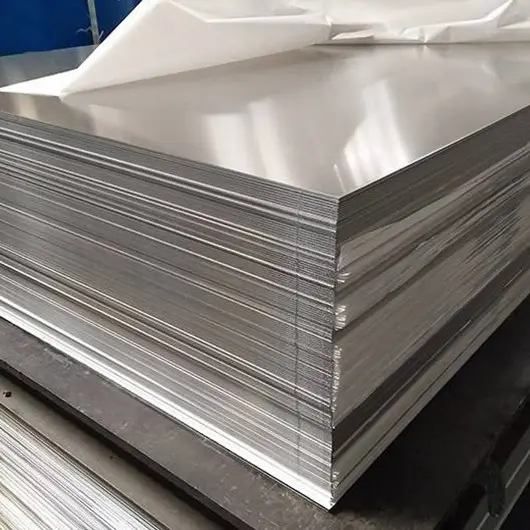

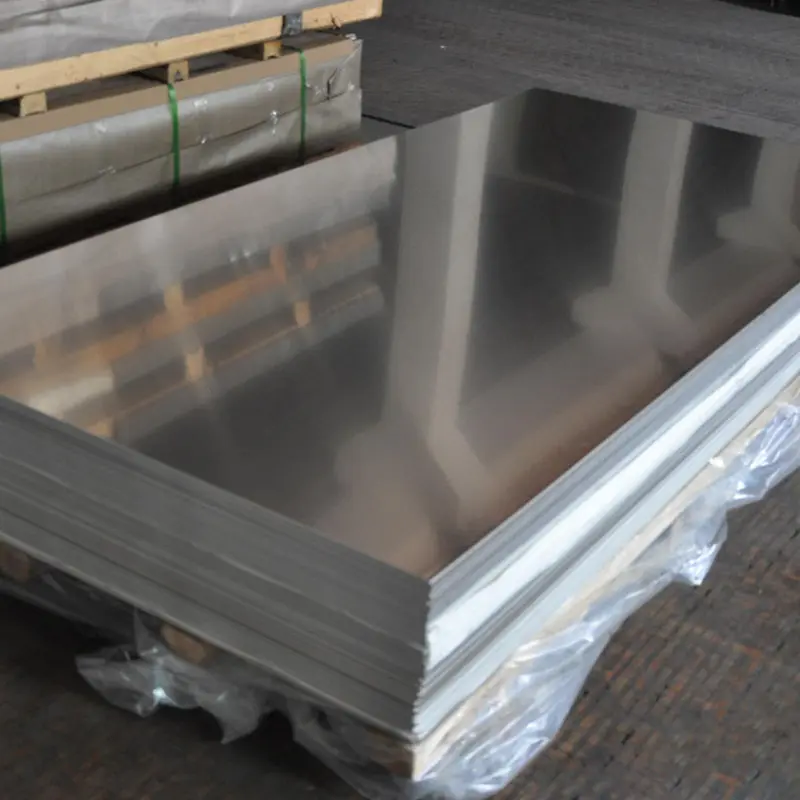

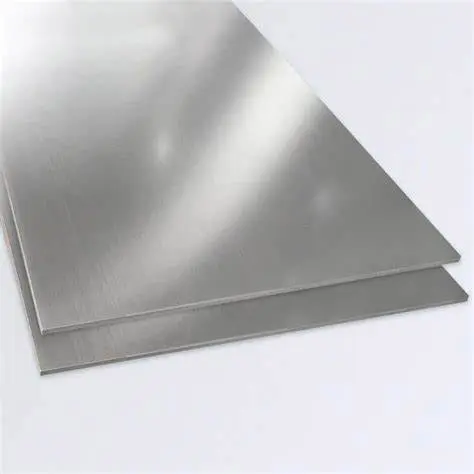

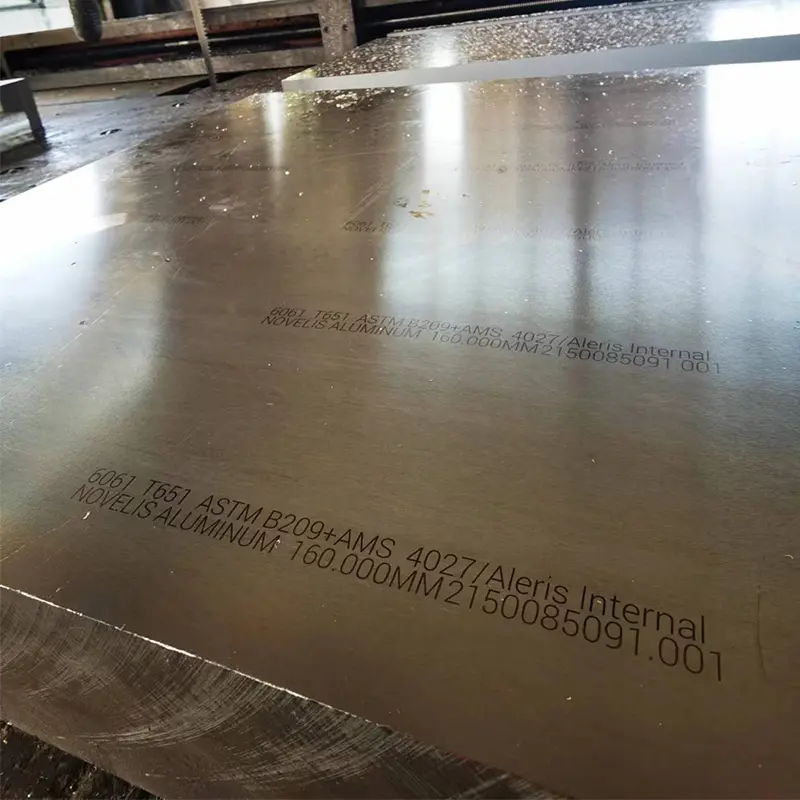

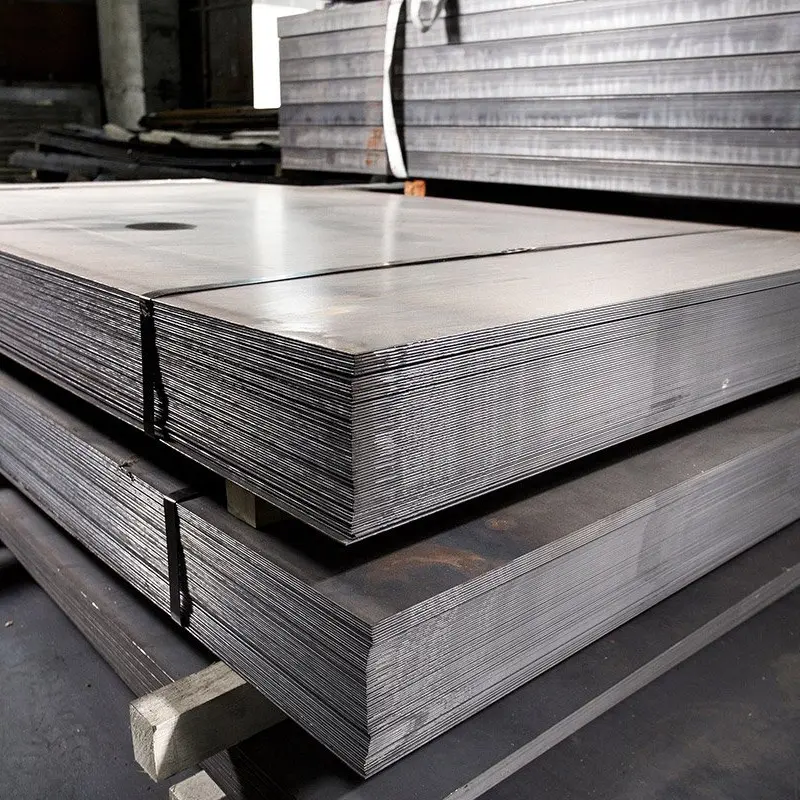

Product Display
Chemical Composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: Each |
Others: Total |
Al: Min. |
|
6061 |
0.40~0.8 |
0.70 |
0.15~0.4 |
0.15 |
0.8~1.2 |
0.04~0.35 |
0.25 |
0.15 |
0.05 |
0.15 |
Margin |
Mechanical Properties
| Tensile Strength (MPa) | Yield Strength (MPa) | Elongation Rate (%) | Hardness (HB) |
| 310 | 276 | 12-25 | 95 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity |
| 2.7 Kg/m³ | 585 °C | 68.9 GPa | 151-202 W/m.K |
Annealing State
|
Brand |
Annealing State |
|
1xxx: 1050, 1050A, 1060, 1100 |
O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
|
3xxx: 3003, 3004, 3005, 3105 |
|
|
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 |
O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
|
6xxx: 6061, 6082 |
T4, T6, T451, T651 |
|
2xxx: 2024 |
T3, T351, T4 |
|
7xxx: 7075 |
T6, T651 |
Scope of Application
|
Aluminum Uses And Application Area |
|
|
Food Packaging |
Beverage can ends, cans, bottle caps, etc. |
|
Building |
Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
|
Transportation |
Auto parts, passenger car bodies, aviation ships and air cargo containers. |
|
Electronic Equipment |
Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
|
Consumer Goods |
Umbrellas, cooking utensils, sports equipment, etc |
|
Other |
Military, color coated aluminum plate |
