6061 aluminum coil for industrial use
specification
|
6061 Aluminum Plate |
|
|
Standard |
ASTM B209,JIS H4000-2006,GB/T 3190-2008,GB/T 3880-2006,etc. |
|
1000 Series |
Industrial Pure Aluminum 1050 1060 1070 1100 |
|
2000 Series |
Al-Cu 2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17 |
|
3000 Series |
Al-Mn 3A21, 3003, 3103, 3004, 3005, 3105 |
|
4000 Series |
Al-Si 4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A |
|
5000 Series |
Al-Mg 5052, 5083, 5754, 5005, 5086,5182 |
|
6000 Series |
Al-Mg-Si 6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02 |
|
7000 Series |
Al-Zn-Mg 7075,7050,7A04,7472,7475 |
|
Surface |
Mirror,Brushed and Embossed sandblasted.etc |
|
Thickness(mm) |
Aluminum sheet:0.15-6.0mm ,Aluminum Plate:6.0-200mm |
|
Width |
1000-2500mm or as the customer’s request |
|
OEM service |
Perforated, Cutting special size, Doing flatness, Surface treatment,etc |
|
Package |
Export standard package: bundled wooden box, suit for all kinds of transport, or be required |

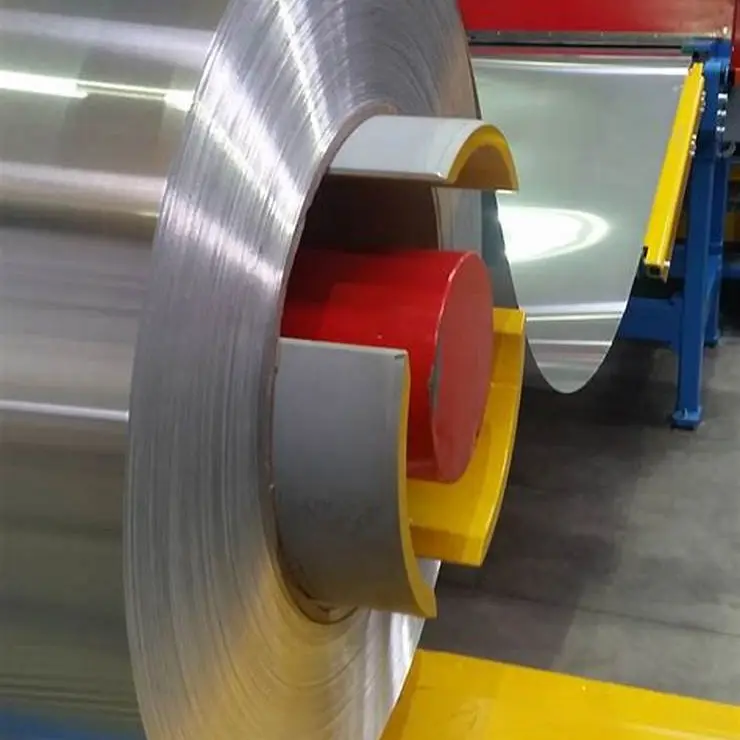

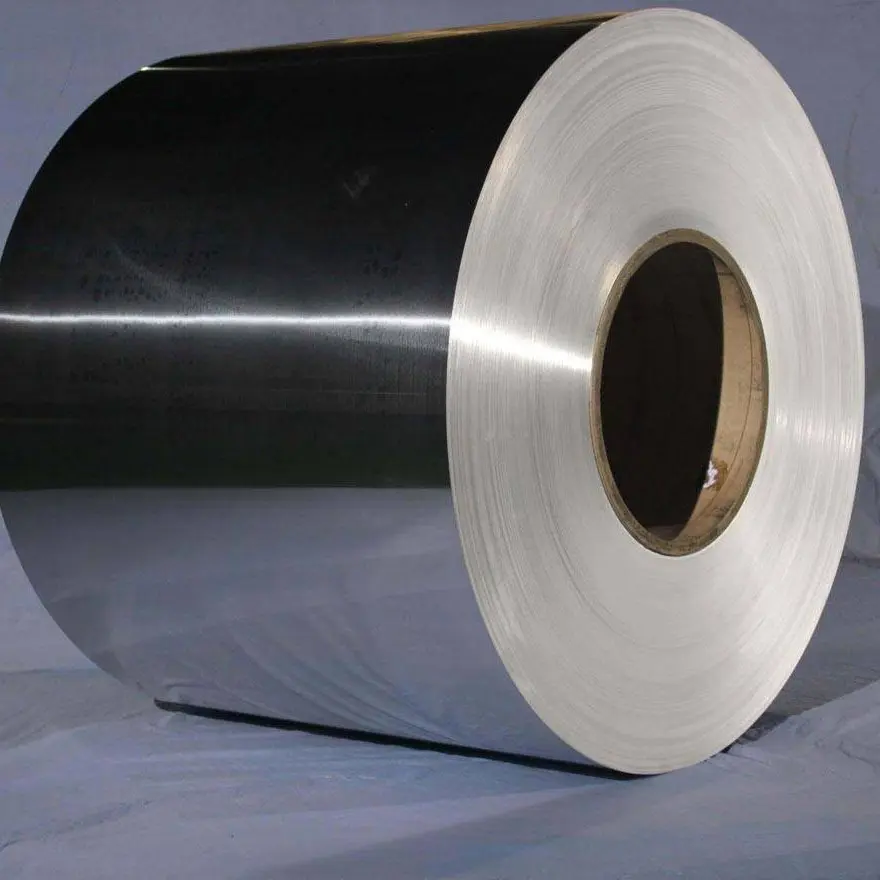

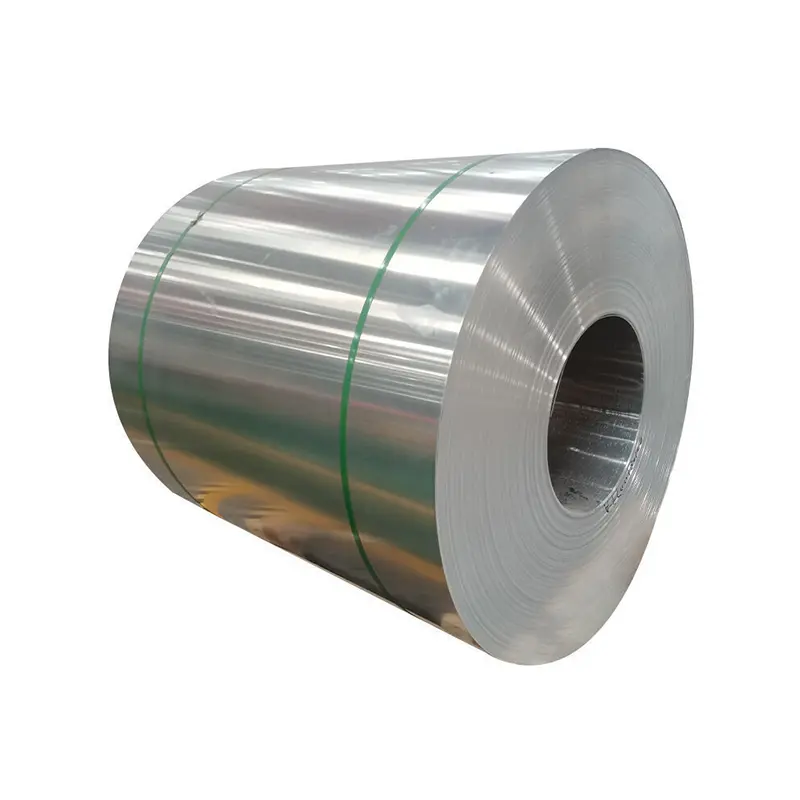

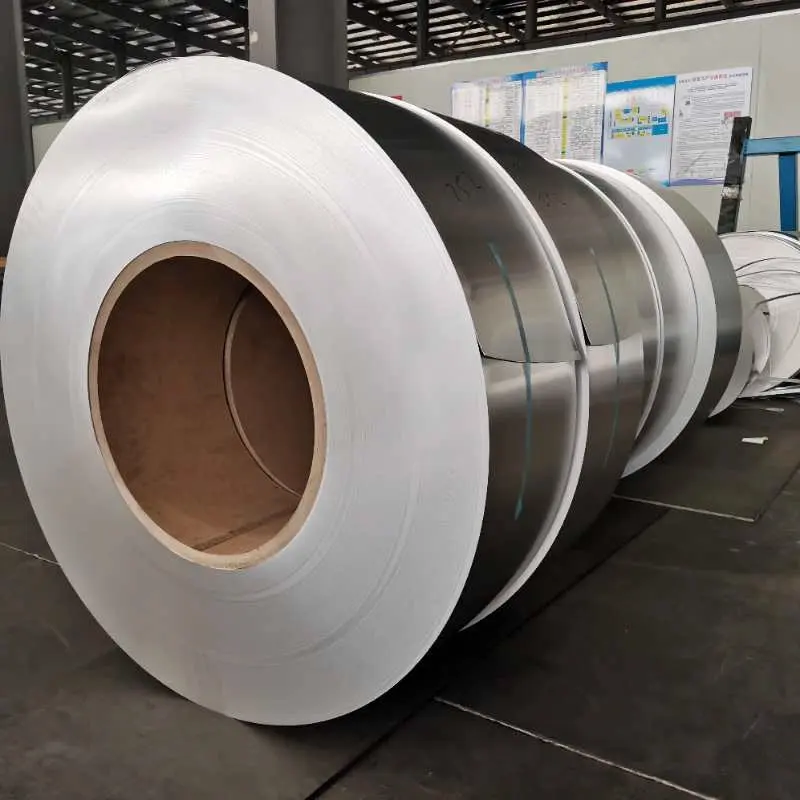

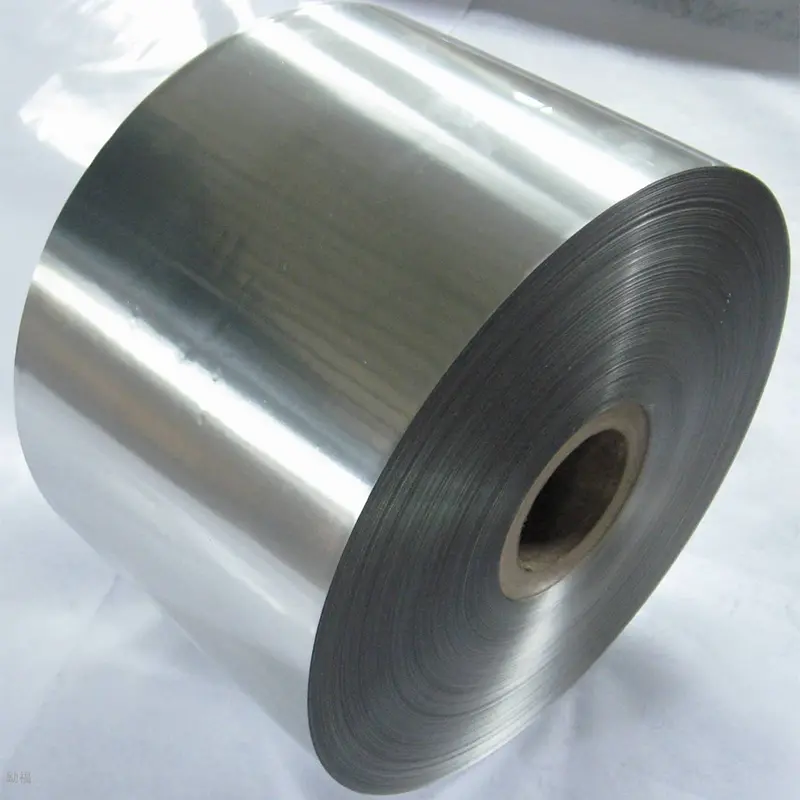

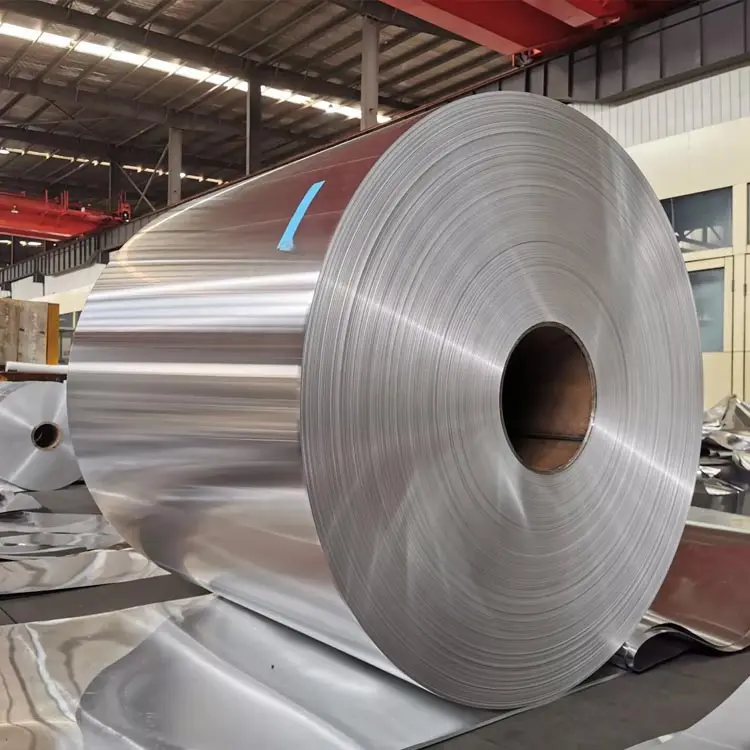

Product Display
Chemical Composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others: Each |
Others: Total |
Al: Min. |
|
6061 |
0.40~0.8 |
0.70 |
0.15~0.4 |
0.15 |
0.8~1.2 |
0.04~0.35 |
0.25 |
0.15 |
0.05 |
0.15 |
Allowance |
Mechanical Properties
| Tensile Strength (MPa) | Yield Strength (MPa) | Elongation Rate (%) | Hardness (HB) |
| 310 | 276 | 12-25 | 95 |
Physical Performance
| Density | Melting Point | Modulus of Elasticity | Thermal Conductivity |
| 2.7 Kg/m³ | 585 °C | 68.9 GPa | 151-202 W/m.K |
Annealing State
|
Brand |
Annealing State |
|
1xxx: 1050, 1050A, 1060, 1100 |
O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
|
3xxx: 3003, 3004, 3005, 3105 |
|
|
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 |
O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
|
6xxx: 6061, 6082 |
T4, T6, T451, T651 |
|
2xxx: 2024 |
T3, T351, T4 |
|
7xxx: 7075 |
T6, T651 |
Scope of Application
|
Aluminum Uses And Application Area |
|
|
Food Packaging |
Beverage can ends, cans, bottle caps, etc. |
|
Building |
Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc. |
|
Transportation |
Auto parts, passenger car bodies, aviation ships and air cargo containers. |
|
Electronic Equipment |
Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc. |
|
Consumer Goods |
Umbrellas, cooking utensils, sports equipment, etc |
|
Other |
Military, color coated aluminum plate |
