5005 aluminum pipe: lightweight yet sturdy

The 5005 aluminum alloy is known for its excellent corrosion resistance, ensuring that your projects remain protected against the elements. Whether you’re working in marine environments, chemical processing, or architectural applications, this aluminum pipe stands up to the test, providing long-lasting performance without compromising on quality.
In addition to its strength and durability, the 5005 Aluminum Pipe boasts excellent weldability and machinability. This means you can easily customize it to fit your specific project requirements, whether you need to cut, bend, or join it with other materials. The smooth surface finish also enhances its aesthetic appeal, making it suitable for visible applications in architectural designs.

product details

specification

Model	5005 Aluminum Pipe
aluminum tube size	Outer Diameter: 3-250mm
	Wall Thickness: 0.3-50mm
	Length: 10mm-6000mm
Standards	ASTM, ASME, EN, JIS, DIN, GB/T, etc
Surface treatment	Mill finished, anodized, powder coating, Sand blast, etc
Surface colors	Nature, silver, bronze, champagne, black, gloden, etc As customized
Status	T4 T5 T6 or other special status
Certificate	ISO 9001 2008
MOQ	1 tons. Usually 12 tons for a 20 feet contaner; 24 tons for a 40 feet container.
Press Machine	500-4000 tons all together 64 press lines

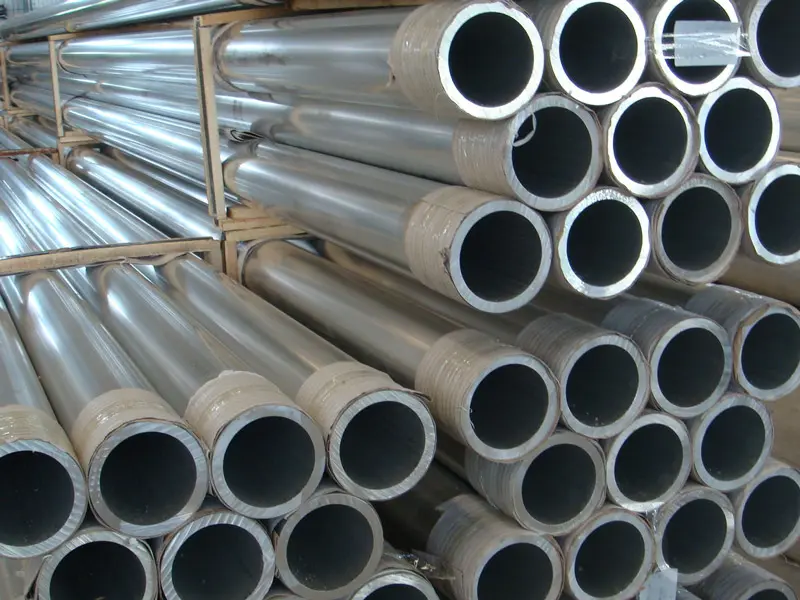

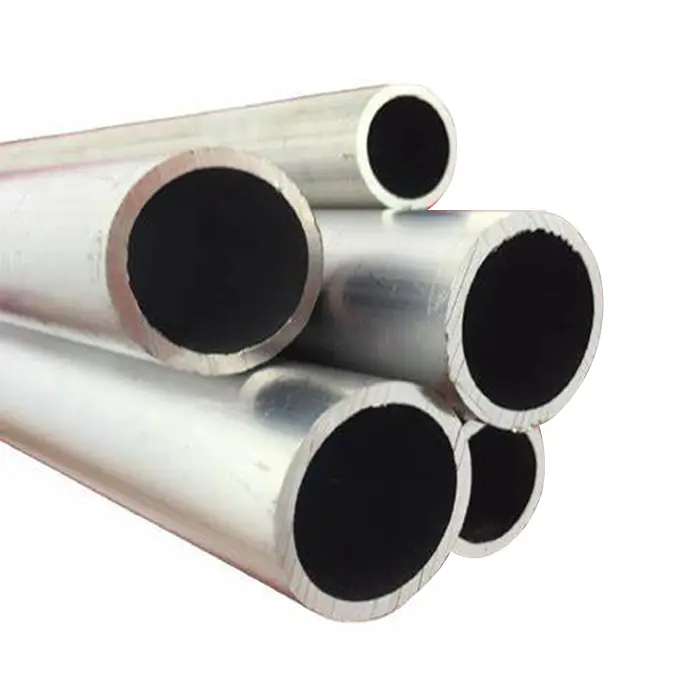

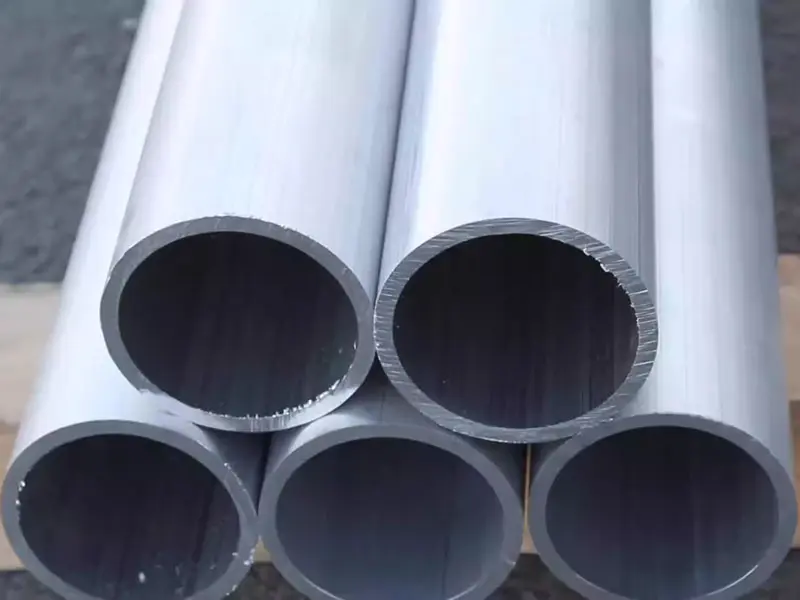

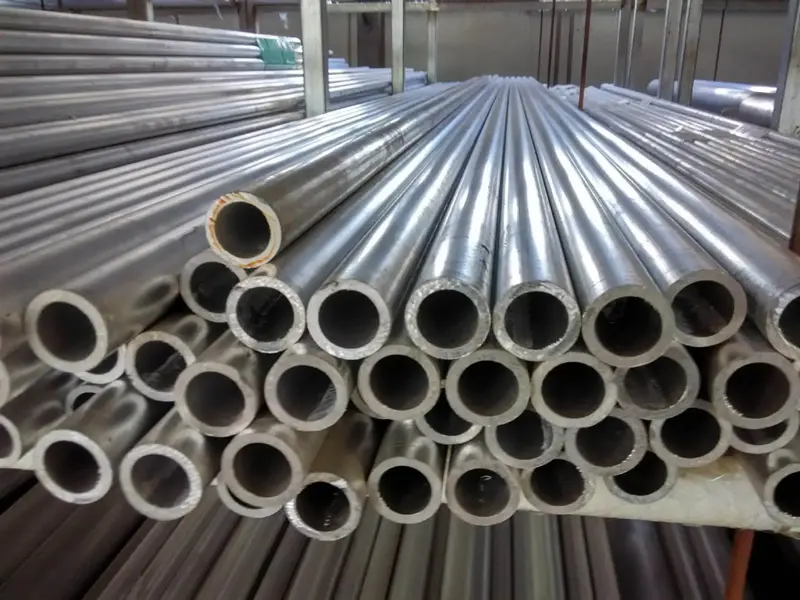

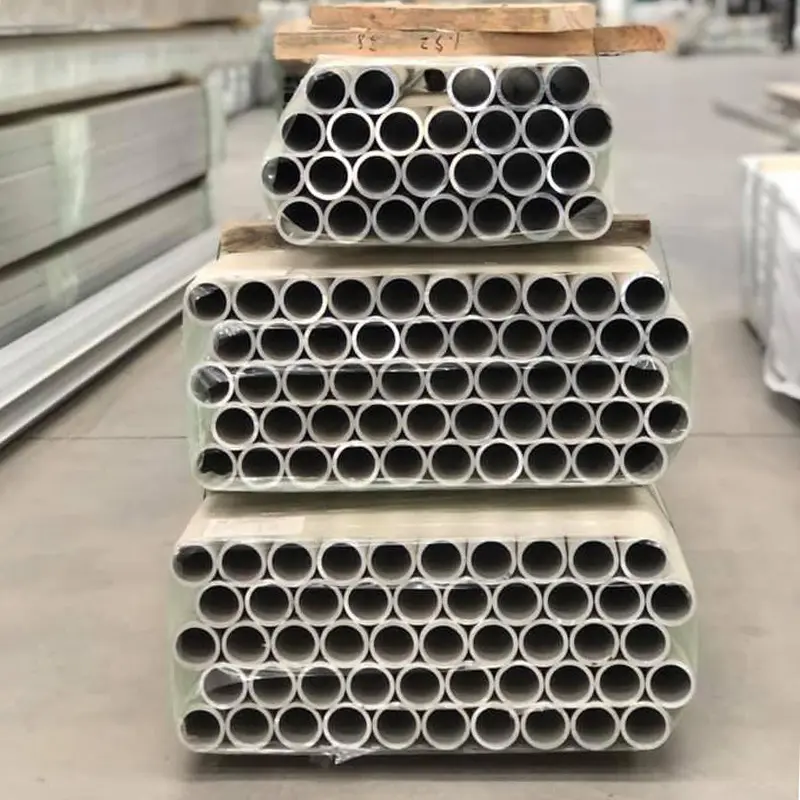

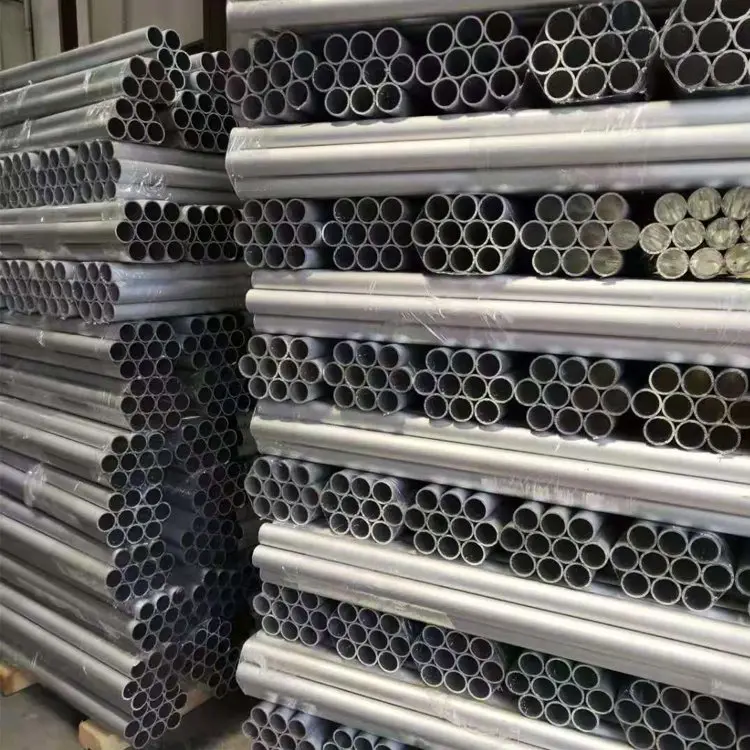

Product Display

Chemical Composition

Alloy

Others:

Each

Others:

Total

Al: Min.

3A21

0.60

0.70

0.20

1.0-1.6

0.05

0.15

0.1-0.2

Margin

Mechanical Properties

Tensile Strength (MPa)	Yield Strength (MPa)	Hardness HB	Elongation Rate (%)
89.6	34	23	15-28

Physical Performance

Density	Melting Point	Modulus of Elasticity	Thermal Conductivity
2.71 Kg/m³	643-675.2 °C	68.9 GPa	222 W/m.K

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate
