316L Stainless bar: Corrosion - resistant for harsh
specification
| Product Name | 316L stainless steel bar |
| Material Grade | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202 |
| Standard | JIS/JIS/SUS/GB/DIN/ASTM/AISI/EN |
| Surface | Polishing,annealing,pickling,bright |
| Technique | Cold Rolled; Hot Rolled |
| Size | 1)stainless steel round bar: OD:1mm-150mm 2)stainless steel square bar: Outer diameter:4mm*4mm-800mm*800mm |
| Length | 4000mm,5800mm,6000mm,12000mm,or as required. |
| Trade Terms | EXW,FOB,CIF, CFR |
| Loading Port | Shanghai port, Tianjin port, Qindao port |
| Payment terms | 1)TT 30 % deposit in advance and balance 70%TT before delivery. |
| 2) 30% deposit by T/T, the balance by L/C at sight. | |
| 3) 100% L/C at sight. | |
| MOQ | 1Ton |
| Packing Detail | Plastic bag/woven packing(please send details packing to us if you have other requirements) |
| Delivery time | 1.Usually,within10-20days after receiving deposit or LC. 2.According to the order quantity |
| Samples | Free samples are provided but the freight is borne by the buyer |

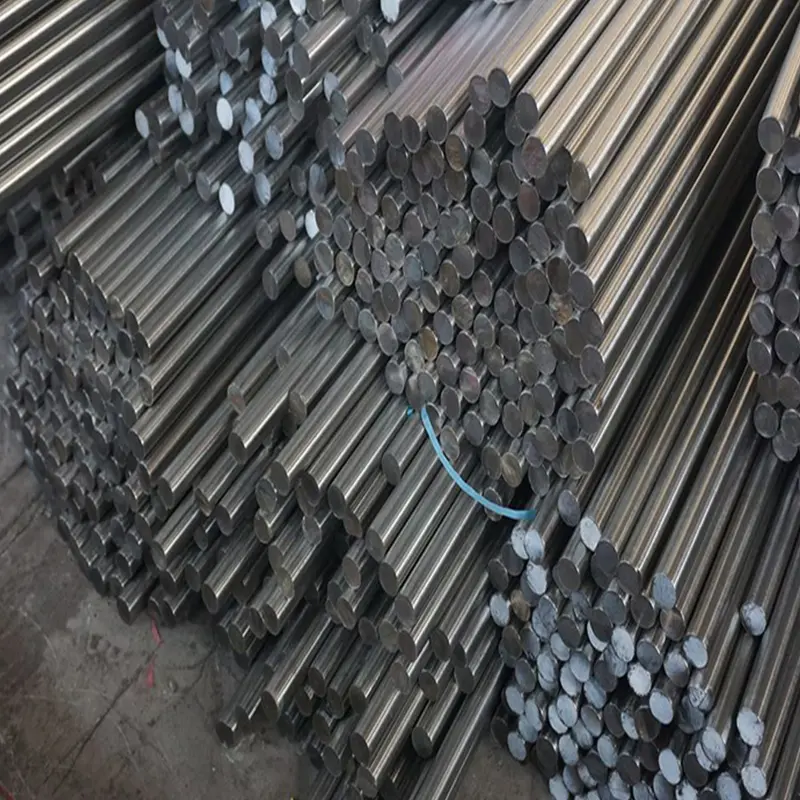

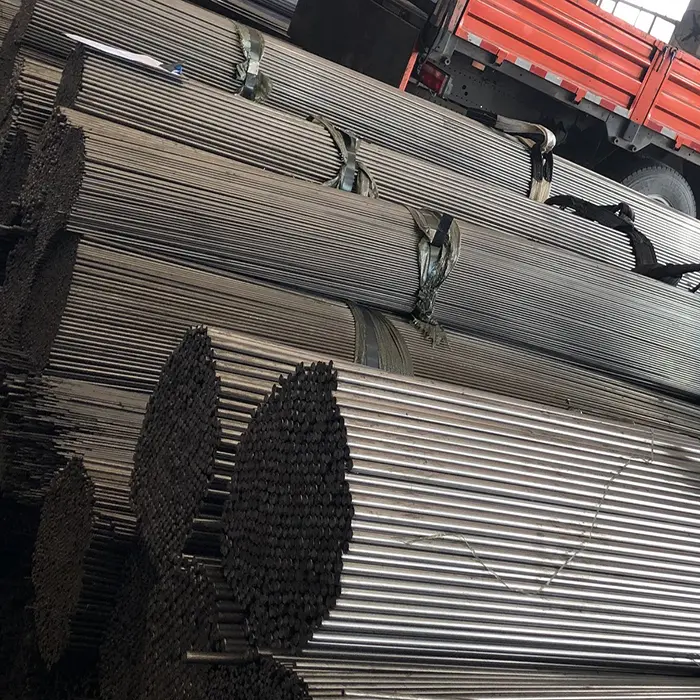

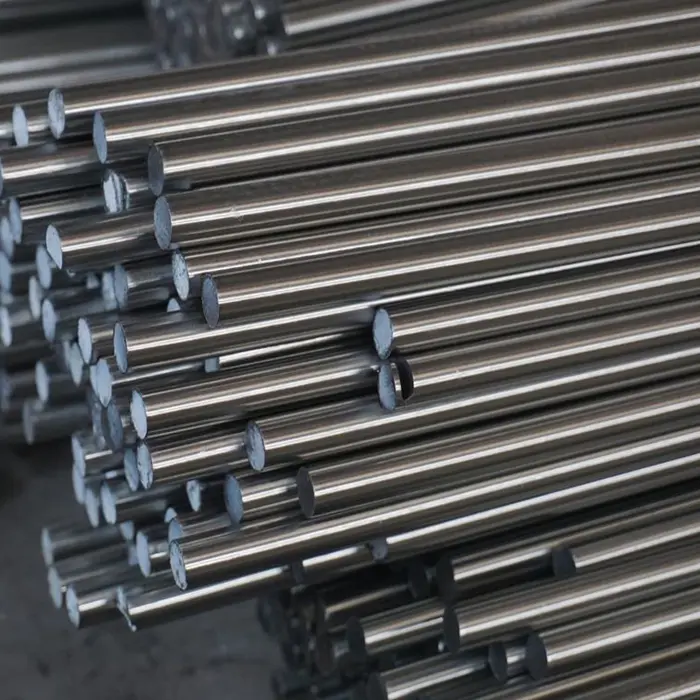

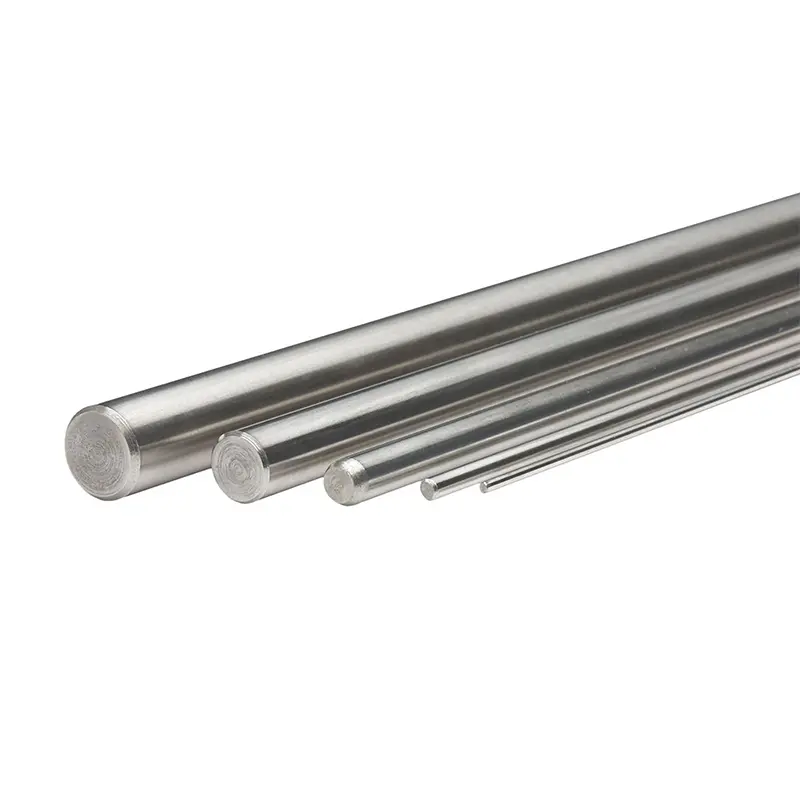

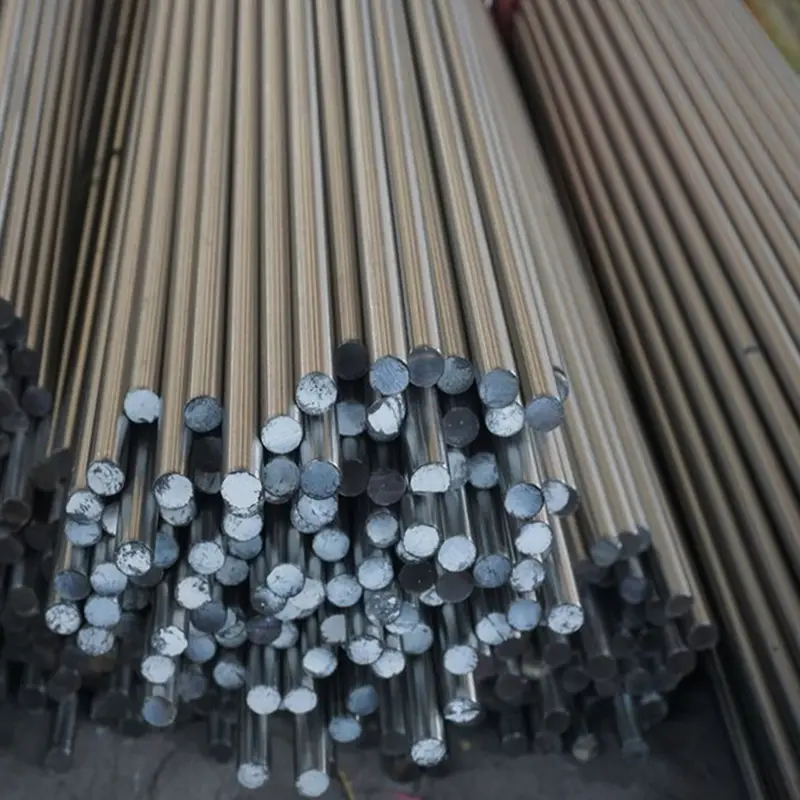

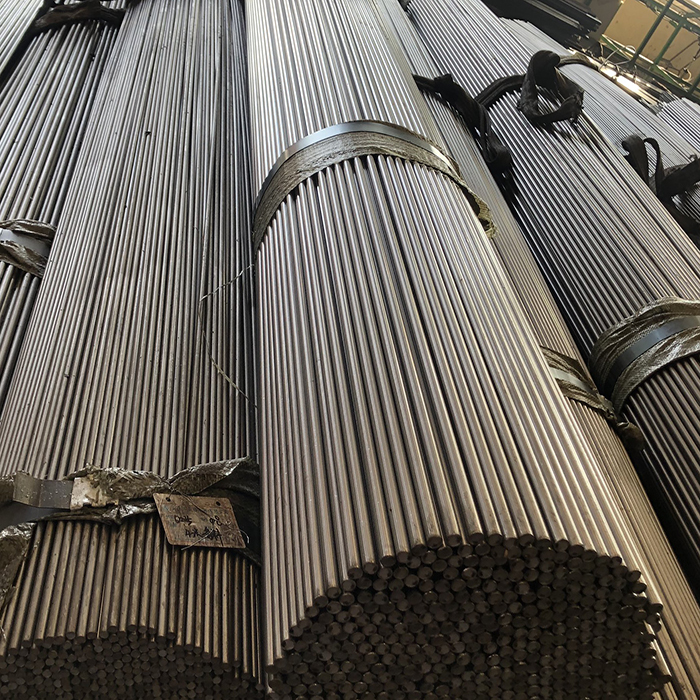

Product Display
Chemical Composition
|
C |
Si |
Mn |
Cr |
Ni |
S |
P |
Mo |
|
≤ 0.03 |
≤1.0 |
≤ 2.0 |
16.0～18.0 |
10.0～14.0 |
≤ 0.03 |
≤ 0.045 |
2.0～3.0 |
Mechanical Properties
|
Tensile Strength Kb (MPa) |
Yield Strength σ0.2 (MPa) |
Elongation D5 (%) |
Hardness |
|
≥480 |
≥177 |
≥ 40 |
≤ 187HB;≤ 90HRB;≤ 200HV |
Physical Performance
|
Density(g/cm³) |
Modulus of Elasticity(Gpa) |
Coefficient of Thermal Expansion(10-6/°C) |
Coefficient of Thermal Conductivity(W/m*K) |
Resistivity(ΜΩ. cm) |
|
7.99 |
193 |
16.0 |
16.2 |
74 |
