2205 high quality stainless steel pipe
specification
|
Product Name |
2205 stainless steel pipe |
|
|
Standard |
ASTM,JIS,DIN,GB,AISI,DIN,EN |
|
|
Outer diameter |
Round Pipe |
4mm-200mm |
|
Square Pipe |
10*10mm-100*100mm |
|
|
Rectangular Pipe |
10*20mm-50*100mm |
|
|
Wall Thickness |
0.6mm-6.0mm |
|
|
Length range |
1-6 meters, Length can be customized |
|
|
Error |
±1% |
|
|
Certification |
ISO 9001 ，CE，API |
|
|
Surface treatment |
Black, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc. |
|
|
Country of origin |
China |
|
|
Main Applications |
1.Oil and Gas Industry: Due to its excellent corrosion resistance, 2205 stainless steel pipes are often used in oil and gas extraction, transportation and processing equipment. |
|
|
2.Chemical industry: In chemical reactors, storage tanks, pipelines and other equipment, 2205 stainless steel pipes can resist corrosion from a variety of chemical media. |
||
|
3.Marine Engineering: Due to its good resistance to seawater corrosion, 2205 stainless steel pipes are widely used in offshore platforms, ships and other marine facilities. |
||
|
4.Food and Pharmaceutical Industry: In food processing and pharmaceutical equipment, 2205 stainless steel pipes are widely used due to their hygiene and corrosion resistance. |
||
|
5.Architectural and Structural Applications: 2205 stainless steel pipes can also be used in building structures, bridges, and other applications that require high strength and corrosion resistance. |
||
|
6.Heat exchanger: Due to its good thermal conductivity, 2205 stainless steel pipe is often used in the manufacture of heat exchangers. |
||
|
Package |
Simple packaging, reinforced packaging, wooden frame, metal frame, pallet, wrapping |
|
|
Payment Term |
TT, LC,Cash, Paypal, DP, DA,Western Union or Others. |
|
|
After-sales service |
1. Quality assurance period 2. Return and exchange policy 3. Delivery and acceptance assistance 4. Customer feedback collection |
|

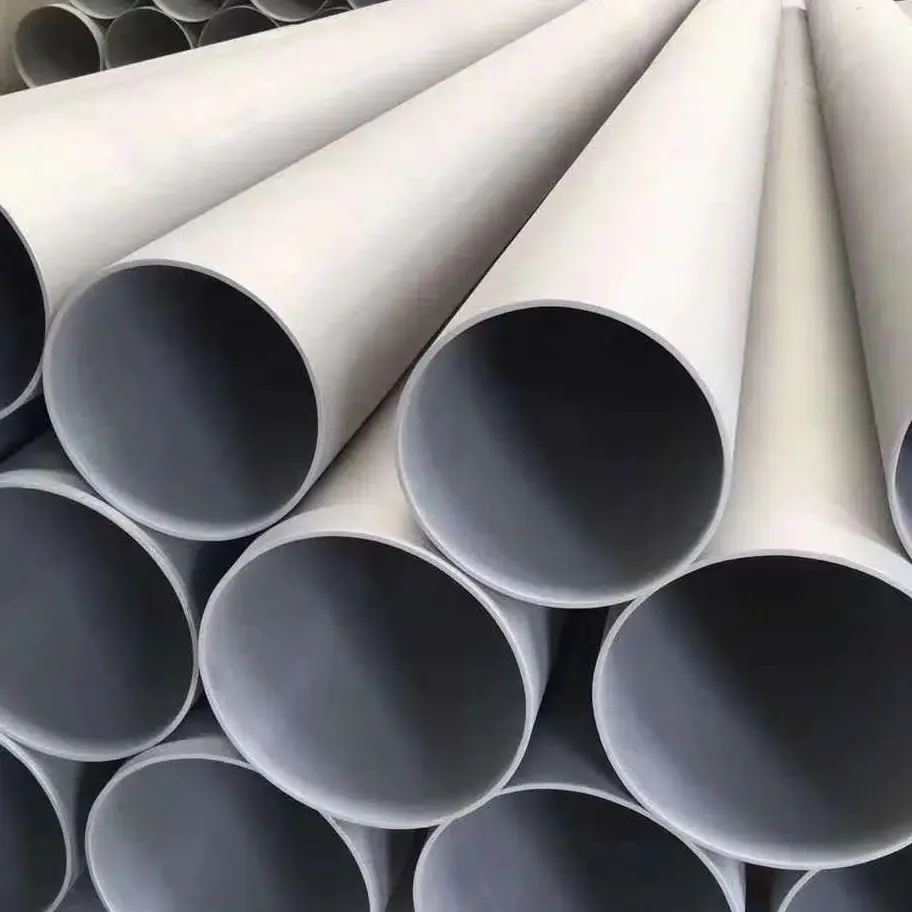

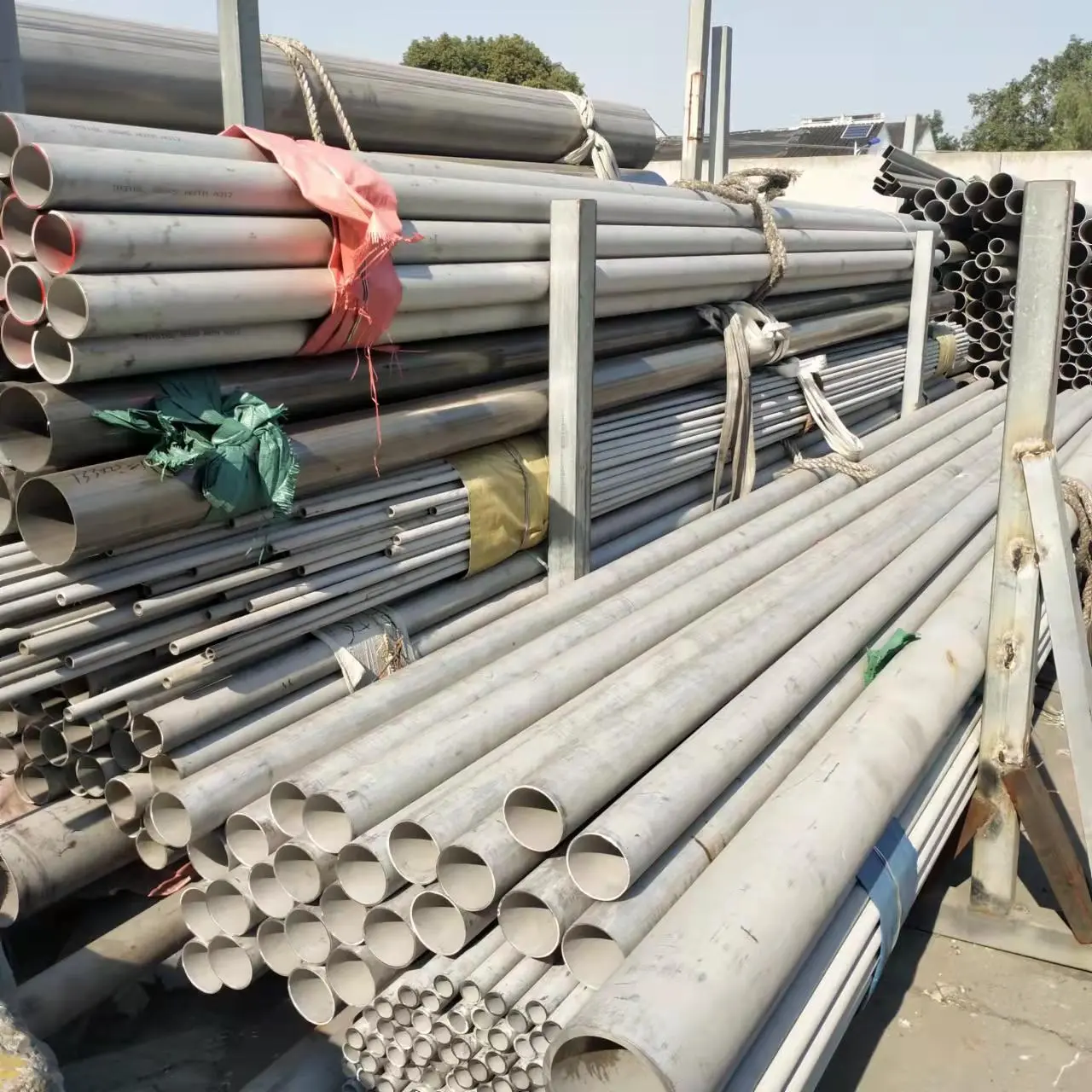

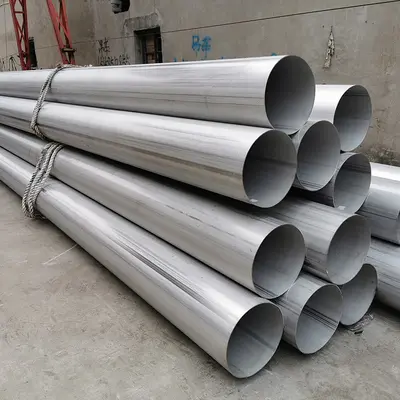

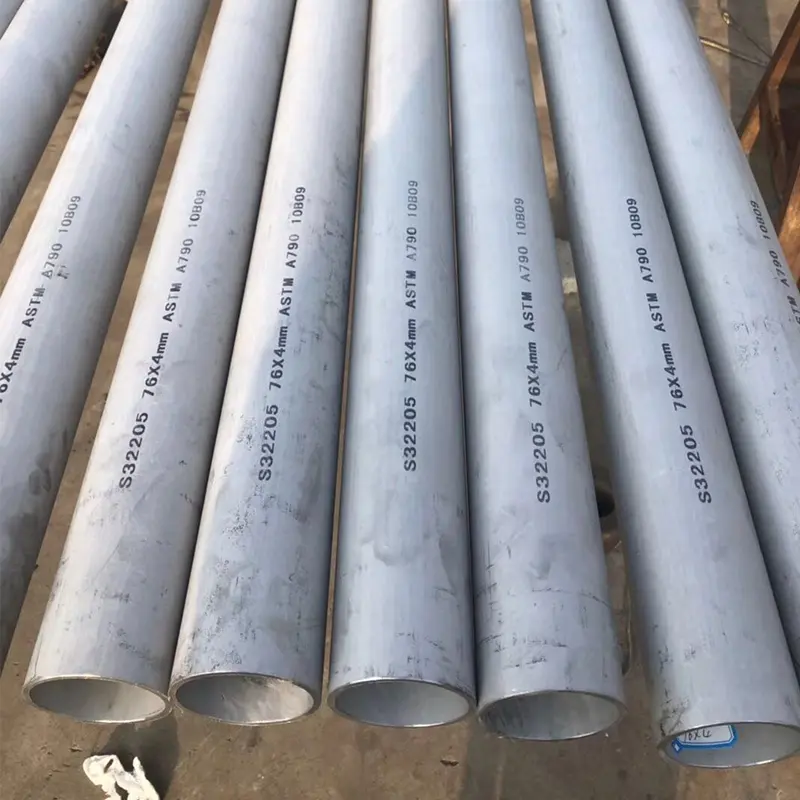

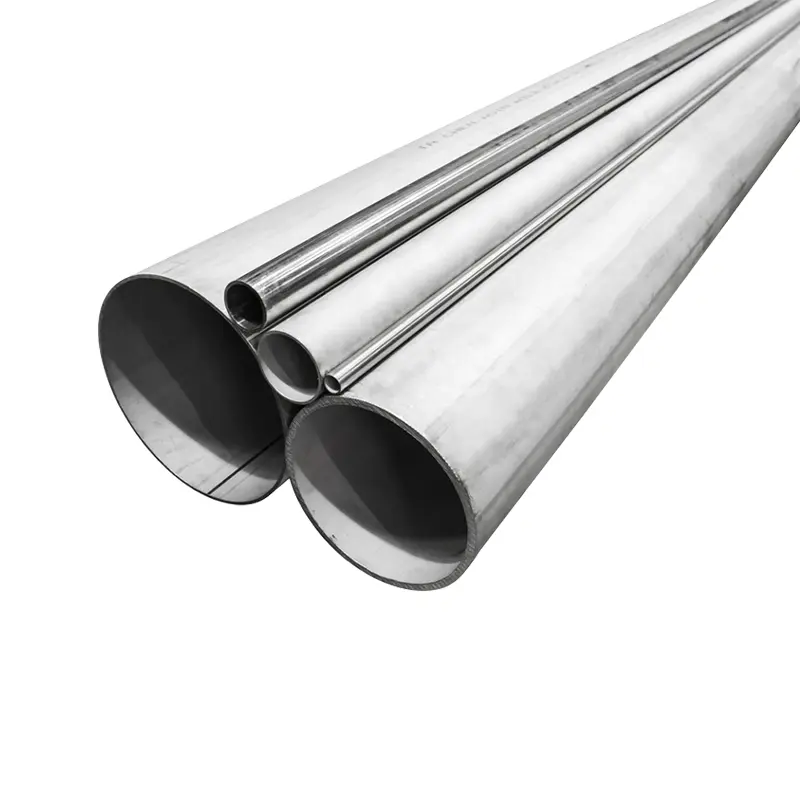

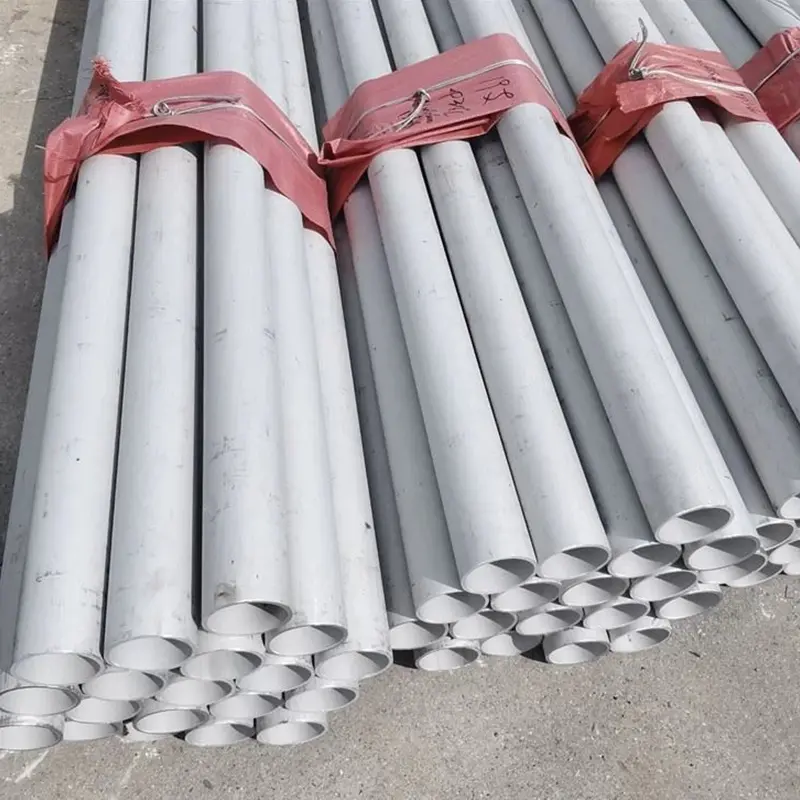

Product Display
Chemical Composition
|
C |
Si |
Mn |
Cr |
Ni |
Mo |
S |
P |
|
≤ 0.03 |
≤1.0 |
≤ 2.0 |
21.0～23.0 |
4.5～6.5 |
2.5～3.5 |
≤ 0.02 |
≤ 0.03 |
Mechanical Properties
|
Tensile Strength Kb (MPa) |
Yield Strength σ0.2 (MPa) |
Elongation D5 (%) |
Hardness |
|
≥620 |
≥450 |
≥25 |
≤ 293HRB |
Physical Performance
|
Density(g/cm³) |
Modulus of Elasticity(Gpa) |
Coefficient of Thermal Expansion(10-6/°C) |
Coefficient of Thermal Conductivity(W/m*K) |
Resistivity(ΜΩ. cm) |
|
7.88 |
190 |
13.7 |
19.0 |
80 |
Production process
Raw material preparation:
Select appropriate alloying elements, such as iron, chromium, nickel, molybdenum, etc., to ensure that they meet the composition standards of 2205 stainless steel.
Smelting:
The raw materials are placed in an electric arc furnace or induction furnace for melting to form liquid metal. The temperature and composition need to be controlled during the melting process to ensure the uniformity of the alloy.
Casting:
Molten metal is poured into a mold and cooled to form an ingot. The size and shape of the ingot affects subsequent processing.
Hot rolled or cold rolled:
After the ingot is heated to the appropriate temperature, it is processed into the desired tube shape by hot rolling or cold rolling process. Hot rolling is usually used for large diameter tubes, while cold rolling is used for small diameter and high precision tubes.
Heat treatment:
Heat treatment is performed on the rolled stainless steel pipe to improve its mechanical properties and corrosion resistance. Common heat treatment methods include solution treatment and aging treatment.
Cooling and annealing:
After heat treatment, the tube needs to be cooled and annealed to eliminate internal stress and improve the toughness of the material.
Cutting and forming:
Cut the stainless steel tubes to the required lengths and perform the necessary forming processes to meet the customer’s specific requirements.
Surface treatment:
Surface treatment of the pipe, such as pickling and polishing, to remove the oxide layer and impurities and improve the surface finish and corrosion resistance.
Inspection and testing:
Conduct quality inspection on finished pipes, including size, appearance, mechanical properties and chemical composition, to ensure they meet relevant standards and customer requirements.
Packaging and Shipping:
Pack qualified products and prepare to ship to customers.
